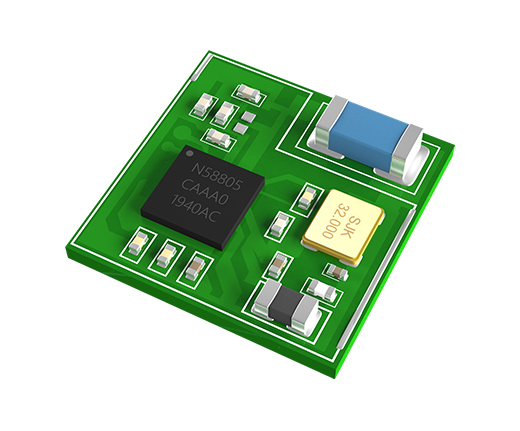

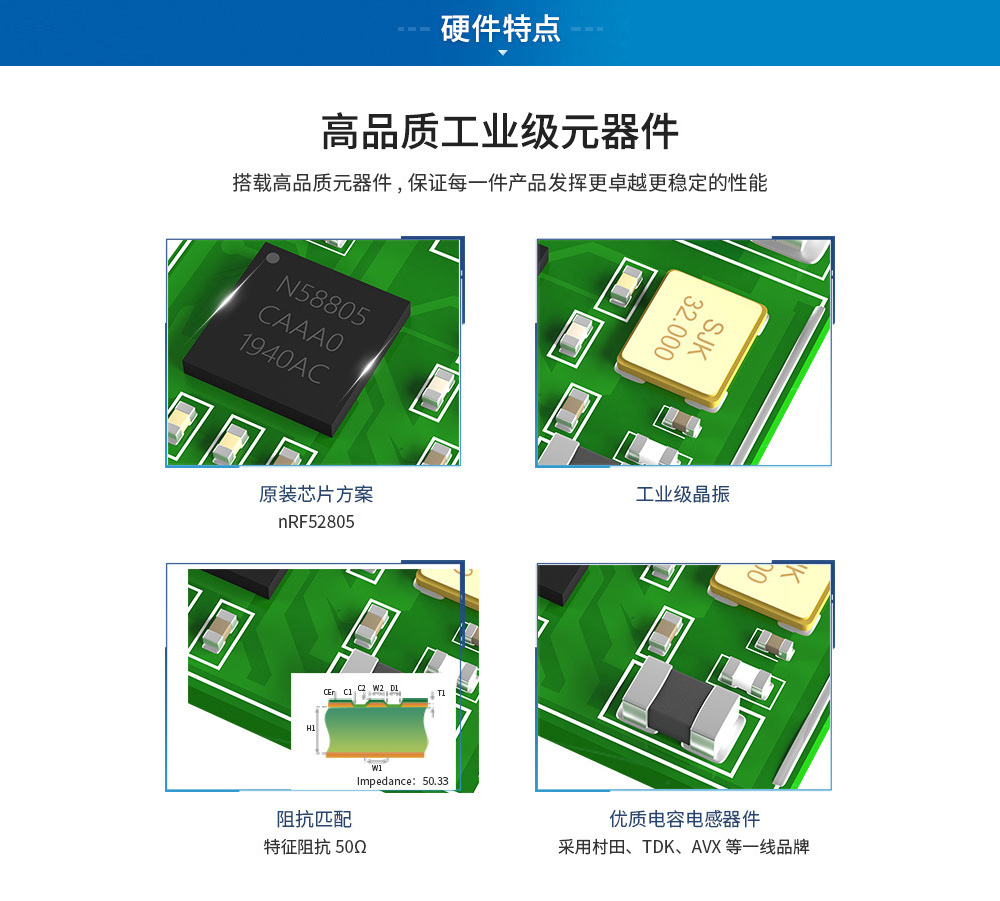

芯片方案：nRF52805
工作頻率：2.402~2.480GHz
藍牙協議：BLE5.0
通信距離：70m

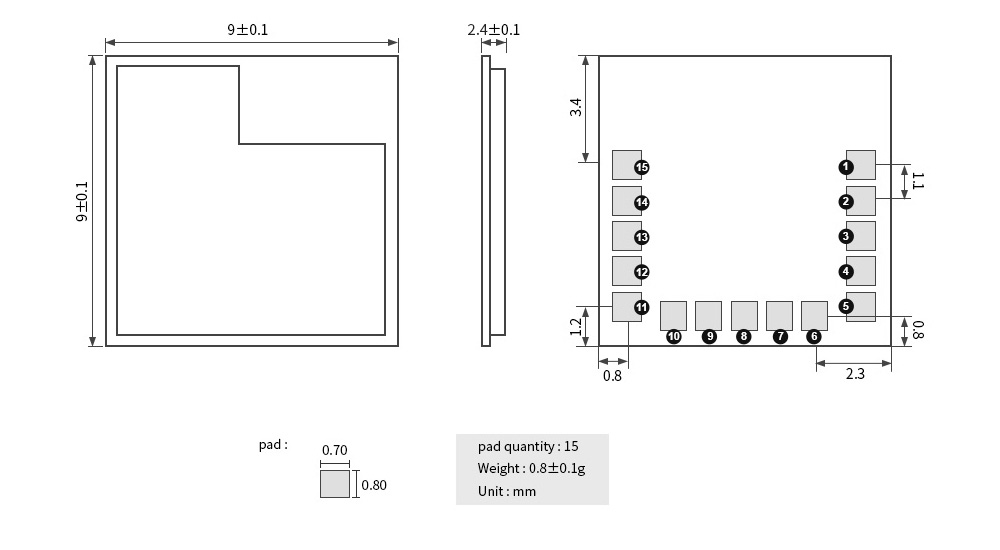

產品尺寸：9*9mm
產品重量：0.35g

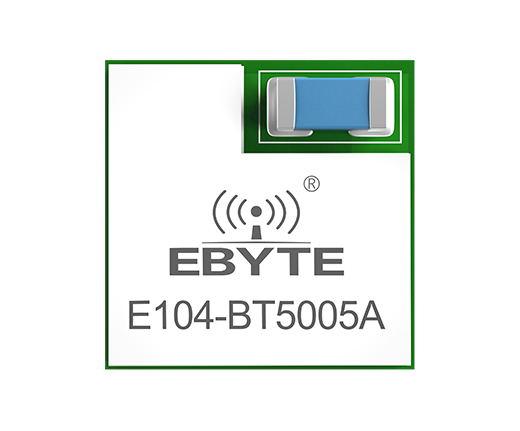

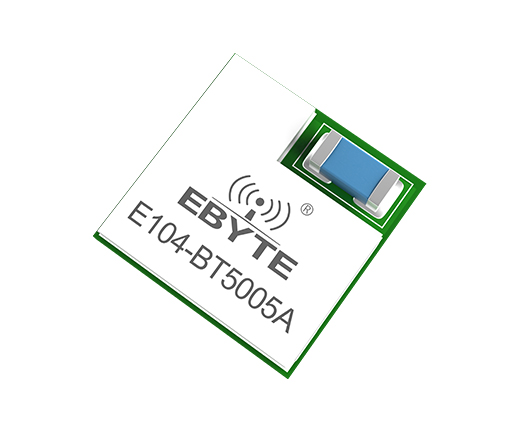

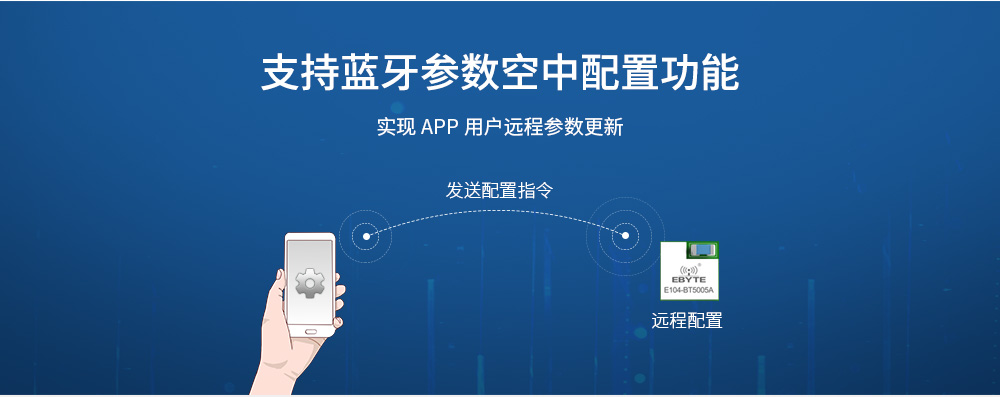

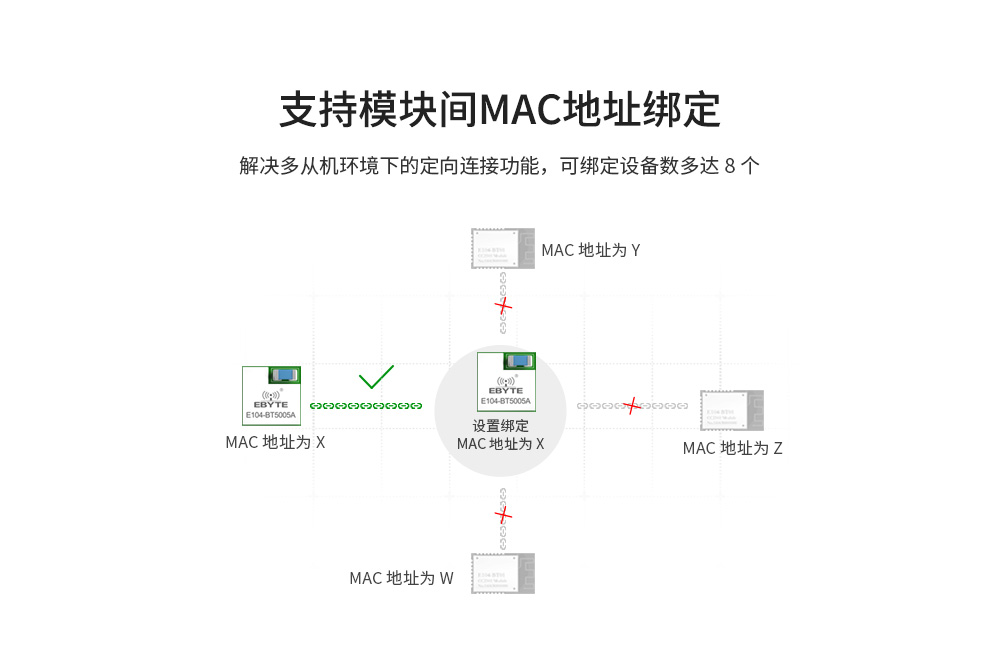

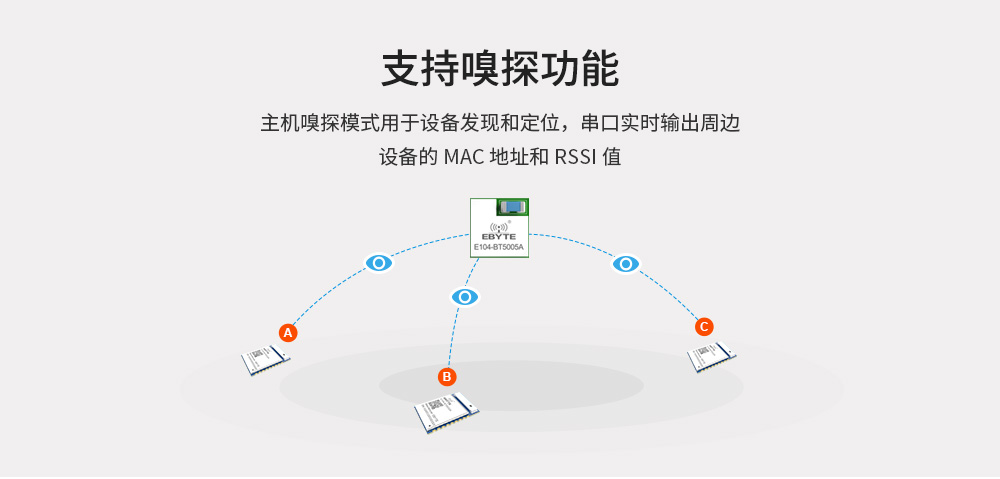

產品簡介：E104-BT5005A 是一款基于藍牙協議 5.0 版本的串口轉 BLE 藍牙主從一體模塊，體積小、功耗低，工作在 2.4GHz 頻段。模塊僅支持藍牙主機、從機和觀察者模式，模塊在功能上支持低功耗廣播、數據透傳、空中配置。
| 主要參數 | 描述 | 備注 |
| 參考距離 | 70m | 晴朗空曠環境，高度 2.0 米; @4dBm;空速：2Mbps |
| 藍牙協議 | BLE5.0 | - |
| 通信接口 | UART 串口 | - |
| 封裝方式 | 貼片式 | - |
| 接口方式 | 1.1 mm | - |
| 外形尺寸 | 9*9mm | - |

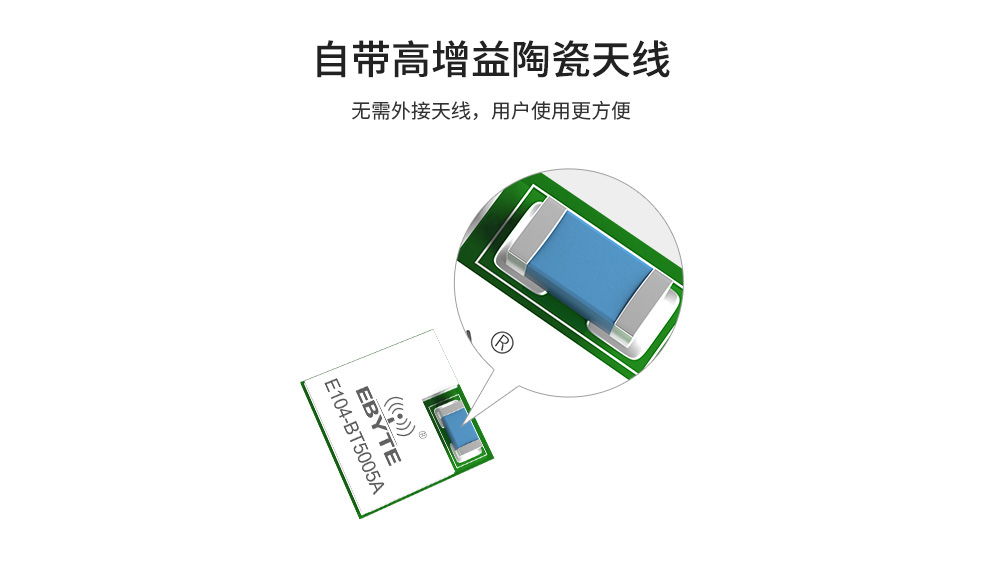

| 天線類型 | 陶瓷天線 | 等效阻抗約 50Ω |
| 主要參數 | 最小值 | 典型值 | 最大值 | 單位 | 備注 |
| 工作電壓 | 1.7 | 3.3 | 3.6 | V | ≥3.3V 可保證輸出功率 |
| 通信電平 | - | 3.3 | - | V | 使用5V TTL 有風險燒毀 |
| 工作溫度 | -40 | - | +85 | ℃ | 工業級設計 |
| 工作頻段 | 2402 | - | 2480 | MHz | 支持 ISM 頻段 |
| 發射電流 | - | 7.2 | - | mA | - |
| 接收電流 | - | 6.4 | - | mA | - |
| 最大發射功率 | -3.5 | 3.8 | 4 | dBm | - |
| 接收靈敏度 | - | -96 | - | dBm | Bluetooth?lowenergymode |

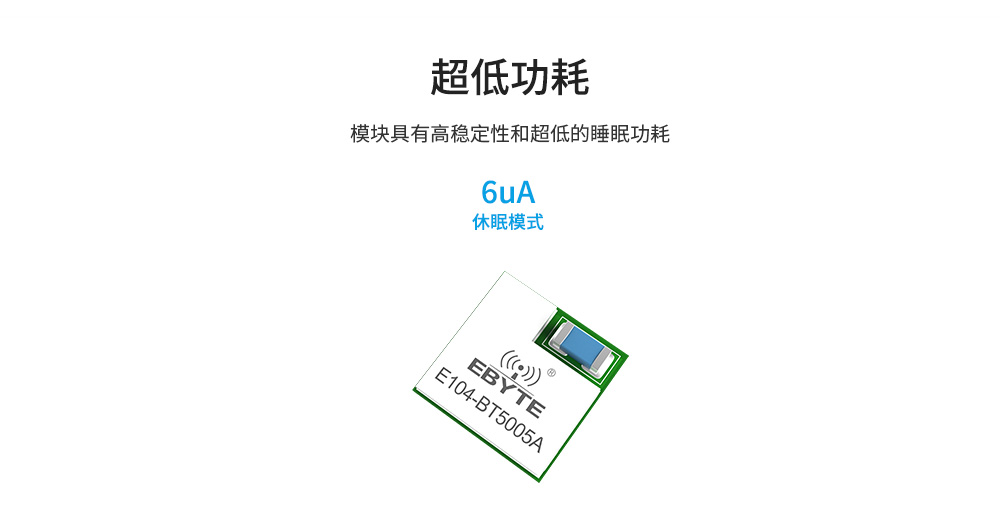

| 休眠廣播電流(默認) | - | 6 | - | uA | 默認廣播間隙為 1s |
| 喚醒廣播電流(默認) | - | 5.8 | - | mA | 默認廣播間隙為 1s |
| 喚醒無廣播電流(默認) | - | 1.8 | - | mA | 默認連接間隙 500ms |
| 序號 | 定義 | 引腳方向 | 引腳功能 | 說明 |
| 1 | SWDIO | -- | -- | -- |
| 2 | SWCLK | -- | -- | -- |
| 3 | P0.21/RST | 輸入 | 電源復位 | 低電平有效 |
| 4 | VCC | -- | -- | 電源正，建議電源電壓>=3.3V |
| 5 | GND | -- | -- | 電源地 |
| 6 | DISC（P0.12） | 輸入 | 斷開連接引腳 | 內部上拉。下降沿有效 |

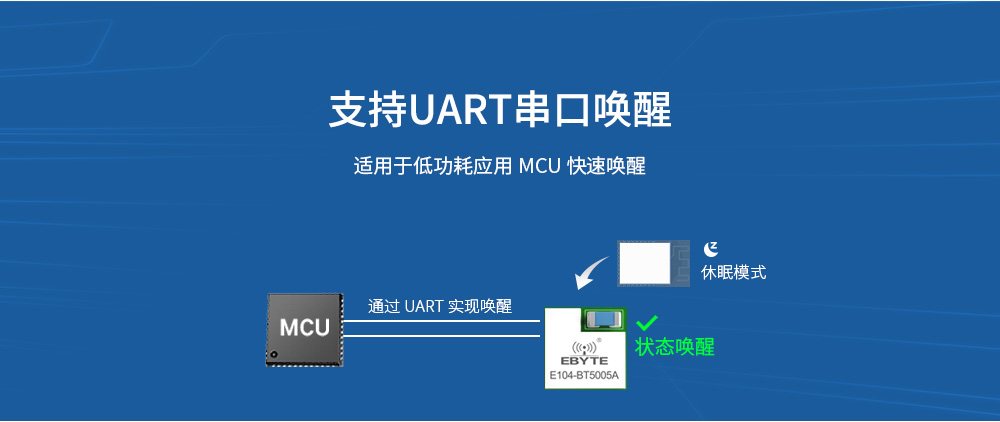

| 7 | WKP（P0.05） | 輸入 | 喚醒引腳 | 喚醒：下降沿； 睡眠：上升沿。 |
| 8 | P0.00 | 輸入/輸出 | -- | 通用 GPIO |
| 9 | MOD（P0.04） | 輸入 | 模式選擇 | 低電平：配置模式； 高電平：透傳模式。 |
| 10 | P0.01 | 輸入/輸出 | -- | 通用 GPIO |
| 11 | RXD（P0.20） | 輸入 | UART RX 引腳 | -- |
| 12 | TXD(P0.14) | 輸出 | UART TX 引腳 | -- |
| 13 | LINK (P0.16) | 輸出 | 連接狀態 | 藍牙連接：低電平 藍牙無連接：高電平 |
| 14 | GND | -- | -- | 電源地 |
| 15 | DATA (P0.18) | 輸出 | 數據指示 | 數據指示引腳，模塊通過串口輸出數據時，模塊置DATA引腳為低電平，表示正在發送數據。AT指令響應不改變DATA引腳狀態。 |
