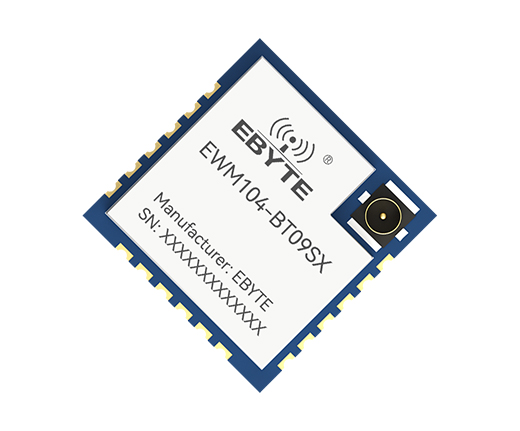

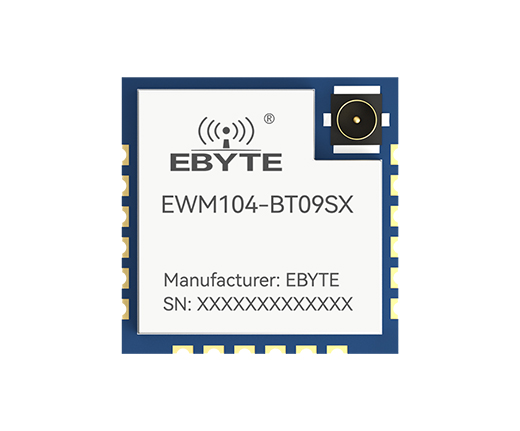

芯片方案：TLSR8208BER
工作頻率：2.402~2.480GHz
通信距離：120m
產品尺寸：10*10mm
產品簡介：EWM104-BT09SX是一款基于億佰特基于泰凌微的TLSR8208BER芯片研發的藍牙協議5.0版本的藍牙轉串口從機模塊，體積小、功耗低，工作在2.4GHz頻段。該藍牙模塊使用通用的AT指令設置參數，操作簡單快捷。模塊支持從機角色、藍牙廣播、數據透?jìng)鳌⒖罩信渲?。模塊可廣泛應用于智能穿戴、家庭自動化、家庭安防、個人保健、智能家電、配飾與遙控器、汽車、照明、工業互聯網、智能數據采集、智能控制等領域。最大支持波特率 1000000bps 的數據傳輸。
| 主要參數 | 性能 | 備注 | |
| 最小值 | 最大值 | ||
| 電源電壓（V） | 0 | 4.2 | 超過4.2V 永久燒毀模塊 |
| 阻塞功率（dBm) | - | 0 | 近距離使用燒毀概率較小 |
| 工作溫度（℃) | -40 | +85 | 工業級 |
| 主要參數 | 性能 | 備注 | |||
| 最小值 | 典型值 | 最大值 | |||
| 工作電壓 | 2.0 | 3.3 | 4.2 | ≥3.3V 可保證輸出功率，具體使用方式詳見引腳定義 | |
| 通信電平(V) | - | 3.3 | - | 使用 5V 電平有風險燒毀 | |
| 工作溫度（℃) | -40 | - | +85 | 工業級設計 | |
| 工作頻段（MHz) | 2402 | - | 2480 | 支持 ISM 頻段 | |
| 功耗 | 發射電流（mA） | - | 26.4 | - | - |
| 接收電流（mA) | - | 3.44 | - | - | |
| 休眠電流（uA) | - | 0.51 | - | 深度休眠 | |
| 發射功率(dBm) | -50 | 0 | 11.5 | - | |
| 接收靈敏度（dBm) | - | -97 | - | 空中速率為 1Mbps | |
| 喚醒廣播電流（mA) | - | 3.58 | - | 默認廣播間隙 100ms | |

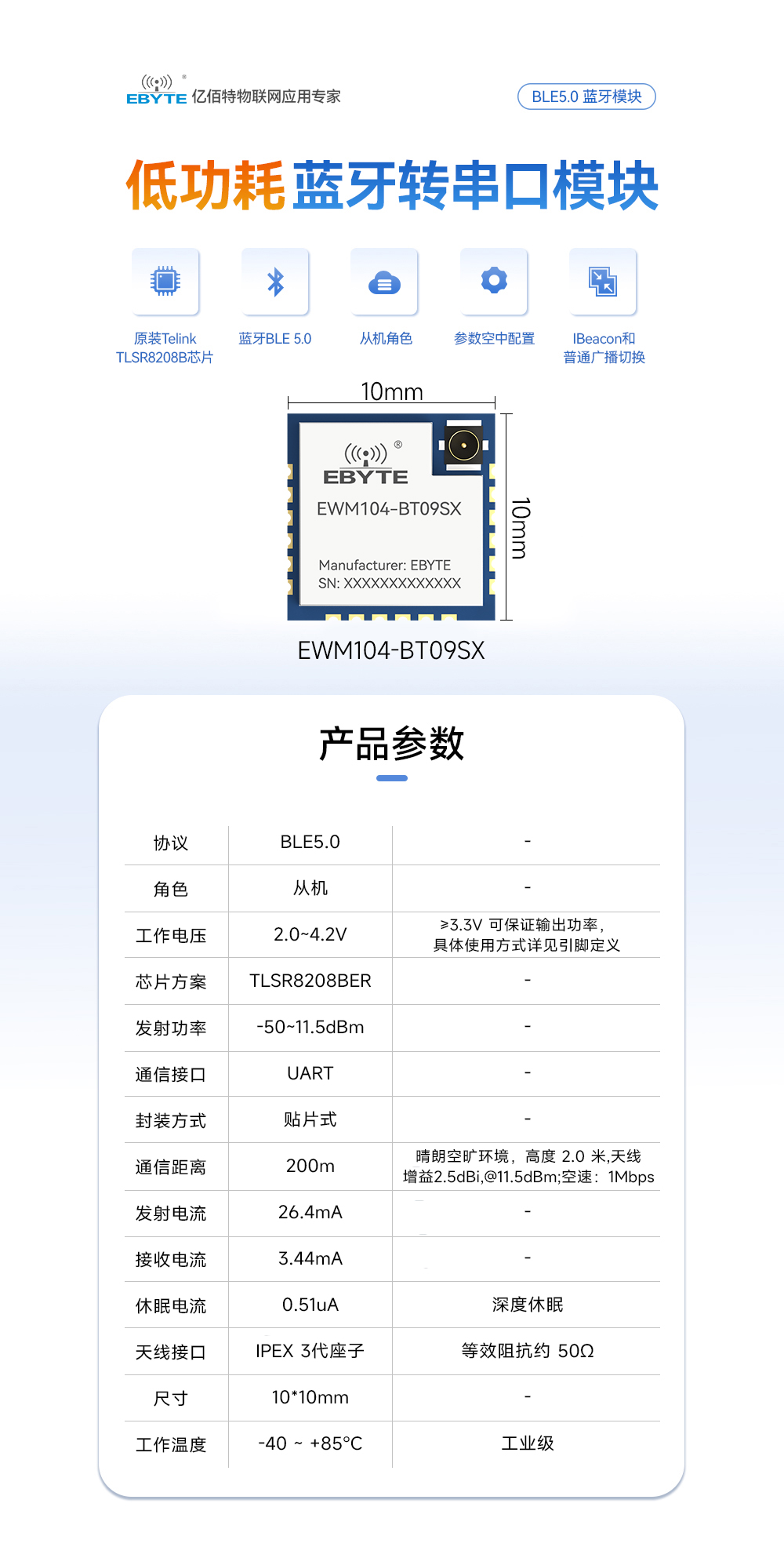

| 主要參數 | 描述 | 備注 |
| 參考距離 | 200 m | 晴朗空曠環境，高度 2.0 米; @11.5dBm; 空速：1Mbps |
| 藍牙協議 | BLE 5.0 | - |
| 射頻芯片 | TLSR8208BER | - |
| FLASH | 128KB | - |
| SRAM | 16KB | - |
| 通信接口 | UART | - |
| 封裝方式 | 貼片式 | - |

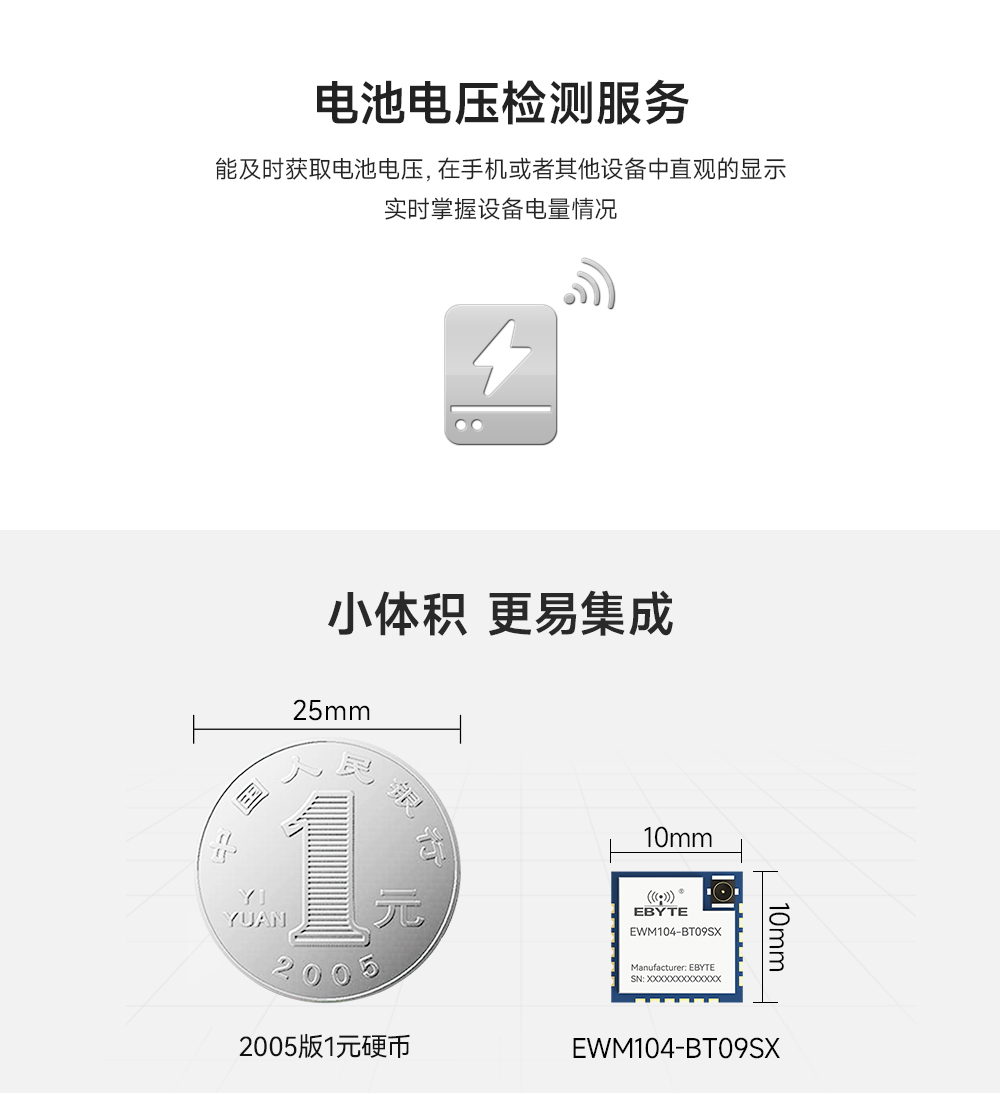

| 外形尺寸 | 10*10 mm | - |
| 射頻接口 | IPEX 3 代 | 等效阻抗約50Ω |
| 重量 | 0.5g | ±0.1g |
| 序號 | 引腳定義 | 引腳功能 | 引腳方向 | 說明 |
| 1 | GND | GND | -- | 電源地 |
| 2 | PD6 | PD6 | -- | 預留 GPIO，用戶無需關心 |
| 3 | PD7 | RESTORE | 輸入 | 內部上拉，下降沿，然后保持低電平至少 5 秒后，所有參數恢復出廠設置并自動重啟模塊。 |
| 4 | SWS | SWS | -- | 程序下載引腳,用戶無需關心； |
| 5 | PA7 | LINK | 輸出 | 連接狀態指示引腳，高電平表示已連接，低電平表示斷開連接 |
| 6 | PB2 | BAT_DET | 輸入 | 電池電壓檢測，詳情查看 6.2.16 節 |
| 7 | RESETB | RESET | 輸入 | 復位引腳,低電平復位 |
| 8 | PB4 | WKP | 輸入 | 默認低電平，低功耗模式，串口不能通信。拉高進入正常工作模式，串口可以通訊。 |
| 9 | PB5 | RXD | 輸入 | 串口輸入 |
| 10 | PB6 | TXD | 輸出 | 串口輸出 |
| 11 | GND | GND | -- | 電源地 |
| 12 | VBAT | VBAT | -- | 電源正極，2.0V~4.2V，推薦 3.3V 供電 |
| 13 | PB7 | PB7 | -- | 預留 GPIO，用戶無需關心 |
| 14 | PC0 | PC0 | -- | 預留 GPIO，用戶無需關心 |
| 15 | PC1 | PC1 | -- | 預留 GPIO，用戶無需關心 |
| 16 | PD2 | PD2 | -- | 預留 GPIO，用戶無需關心 |
| 17 | PD1 | PD1 | -- | 預留 GPIO，用戶無需關心 |
| 18 | GND | GND | -- | 電源地 |
