工作頻率：2400~2483.5MHz
調制方式：GFSK
通信距離：60m

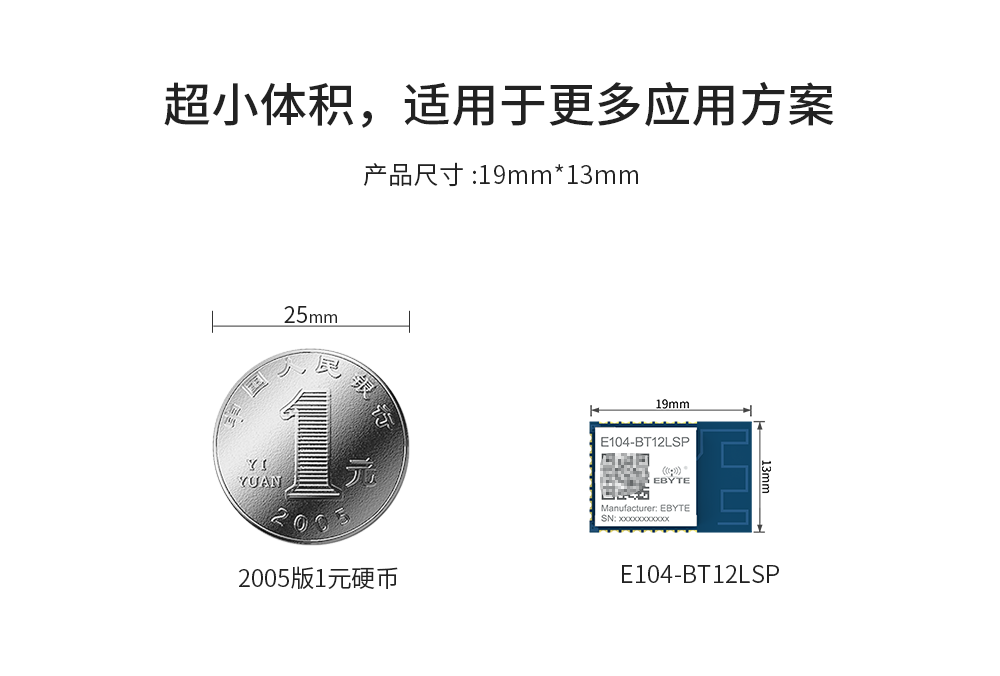

產品尺寸：19*13mm
最大發射功率：10dBm 產品重量：0.9g±0.1g

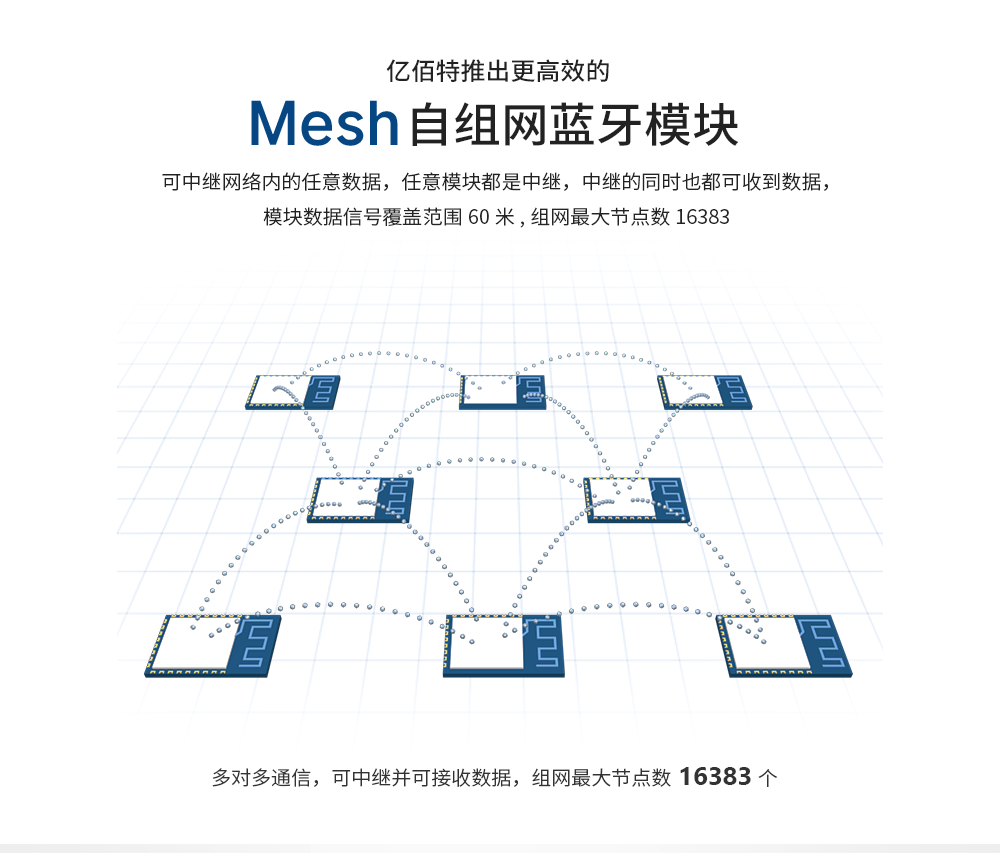

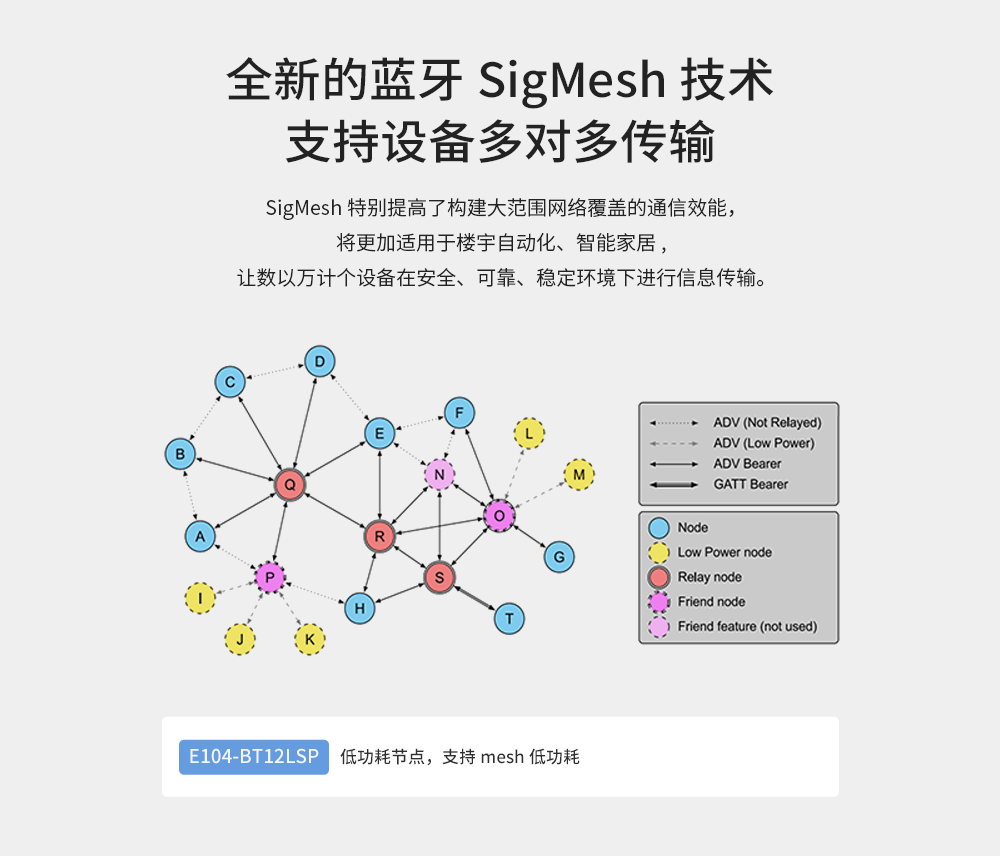

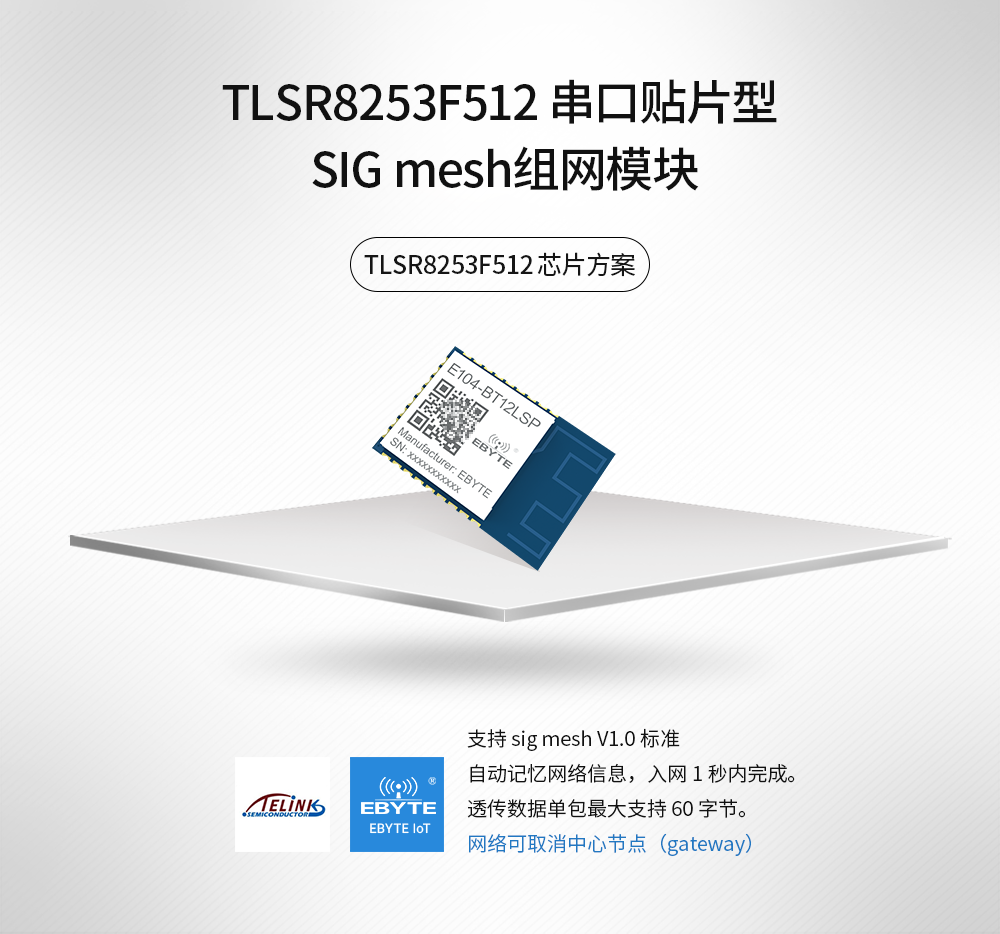

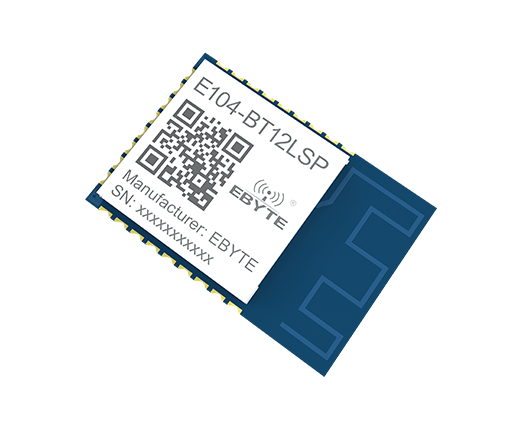

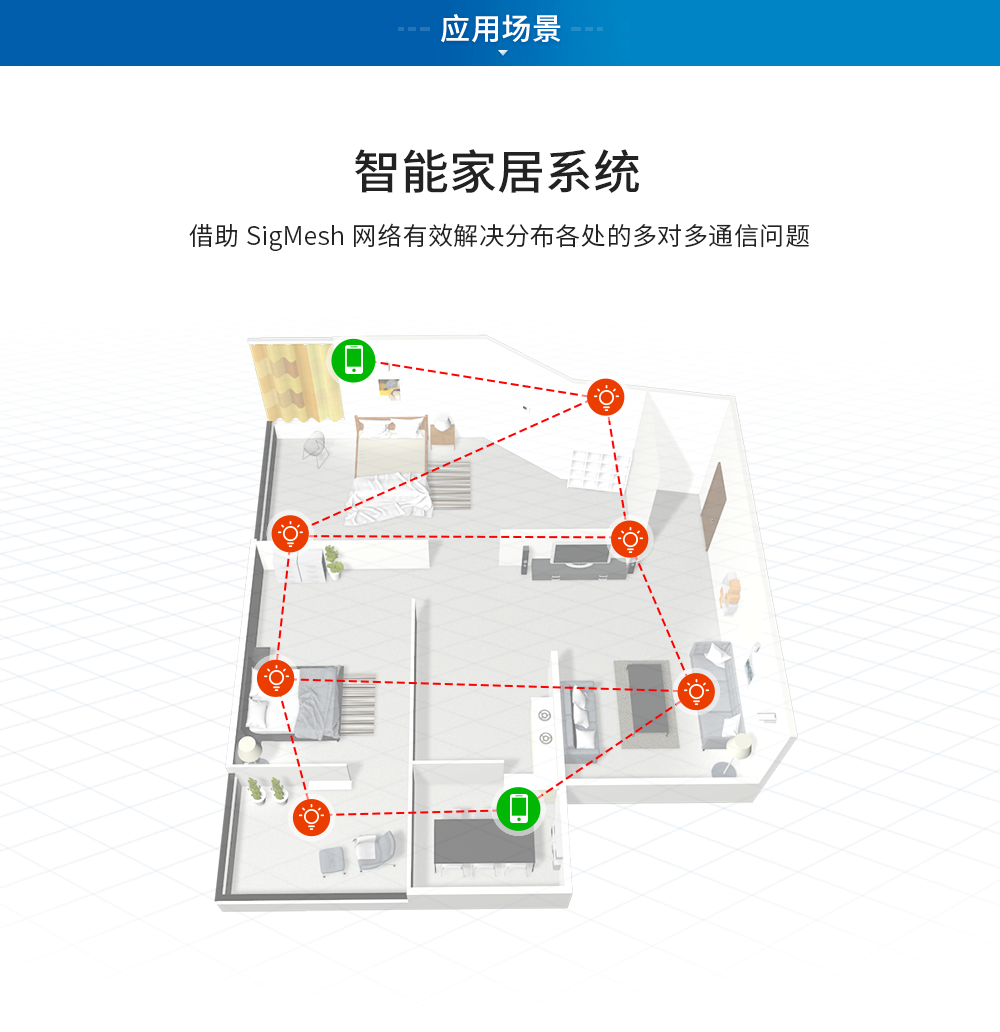

產品簡介：E104-BT12SP藍牙m(xù)esh自組網模塊支持sig mesh V1.0標準，單網絡理論最大可容納16383個節點設備。設備入網后自動記憶網絡信息，入網時間1秒內完成。手機APP可任意節點代理入網，實現mesh網絡遠程控制?？煞奖銓?shí)現網內廣播或任意定點數據透?jìng)?，透?jìng)鲾?shù)據單包最大支持60字節。非常適合物聯網信息采集，大規模組網通訊場景，智能家居等應用。
| 主要參數 | 參數值 | 備注 |
| 參考距離 | 60m | 晴朗空曠，天線高度 2.5 米，空中速率 1Mbps |
| FIFO | 60byte | 單次發送最大長度 |
| 晶振頻率 | 24MHz | - |
| 調制方式 | GFSK | GFSK Mode |
| 封裝方式 | 貼片式 | - |
| 接口方式 | 1.27mm | - |
| 通信接口 | UART | 4800～230400bps |

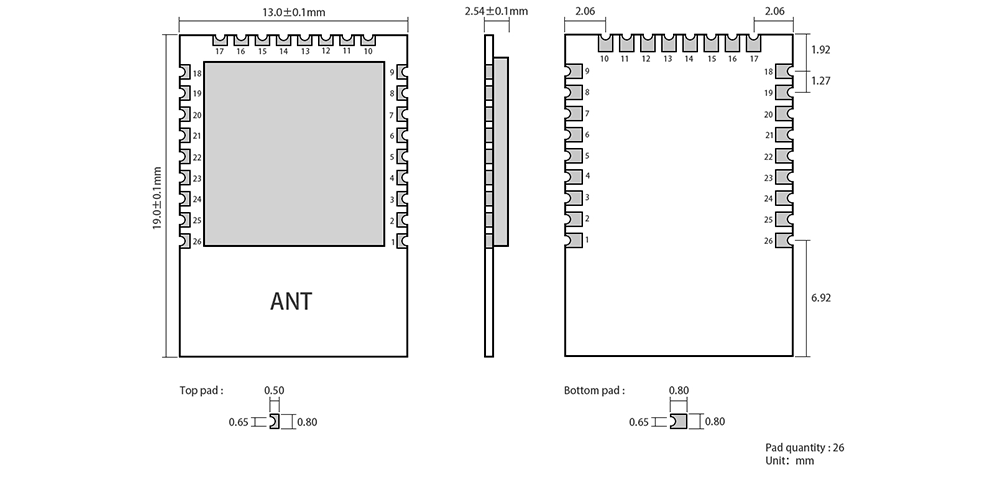

| 外形尺寸 | 19*13mm | - |
| 天線接口 | PCB | 等效阻抗約 50Ω |
| 主要參數 | 最小值 | 典型值 | 最大值 | 單位 | 條件 |
| 工作電壓 | 1.9 | 3.3 | 3.6 | V | ≥3.3V 可保證輸出功率 |
| 通信電平 | - | 3.3 | - | V | 使用5V TTL 有風險燒毀 |
| 發射電流 | - | 21 | - | mA | 輸出 10dBm 時的瞬時功耗 |
| 接收電流 | - | 6.1 | - | mA | - |
| 休眠電流 | - | 13.32 | - | uA | - |
| 工作溫度 | -40 | - | +85 | ℃ | 工業級 |
| 工作頻段 | 2400 | - | 2483.5 | MHz | 支持 ISM 頻段 |
| 最大發射功率 | - | 10 | - | dBm | - |
| 接收靈敏度 | - | -96 | - | dBm | 空中速率為 1Mbps |
| 通信速率 | 125k | 1M | 2M | bps | 默認 1Mbps |
| 序號 | 引腳 | 引腳方向 | 備注 |
| 1 | GND | - | 地線，連接到電源參考地 |

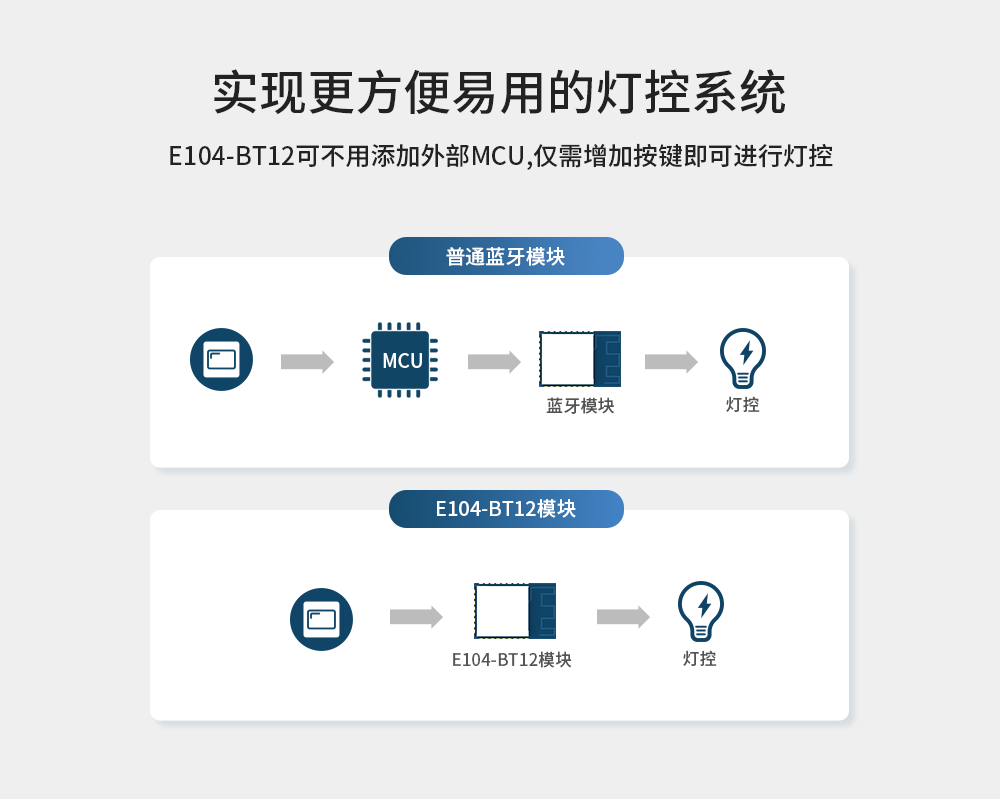

| 2 | PWM1 | PWM輸出 | 對應SIGMESH HSL模型的綠燈 |
| 3 | PWM2 | PWM輸出 | |
| 4 | NC | - | 用戶無需關心 |
| 5 | NC | - | 用戶無需關心 |
| 6 | DIO1 | 輸入 | 開關輸入引腳，對應 TLSR8253 的 PA0 引腳 |
| 7 | DIO2 | 輸入 | 開關輸入引腳，對應 TLSR8253 的 PA1 引腳 |
| 8 | NC | - | 用戶無需關心 |
| 9 | NC | - | 用戶無需關心 |
| 10 | SWM | - | 用戶無需關心 |
| 11 | SWS | - | 用戶無需關心 |
| 12 | NC | - | 用戶無需關心 |
| 13 | LINK | - | 用戶無需關心 |
| 14 | NC | - | 用戶無需關心 |
| 15 | PWM3 | PWM輸出 | 對應SIGMESH HSL模型的藍燈 |
| 16 | NC | - | 用戶無需關心 |
| 17 | TXD | 輸出 | UART的發射引腳，對應用戶串口接收 |
| 18 | RXD | 輸入 | UART的接收引腳，對應用戶串口發送 |
| 19 | VCC | - | 供電電源，范圍1.9～3.6V（建議外部增加陶瓷濾波電容） |
| 20 | GND | - | 地線，連接到電源參考地 |
| 21 | NC | - | 用戶無需關心 |
| 22 | NC | - | 用戶無需關心 |
| 23 | NC | - | 用戶無需關心 |
| 24 | NC | - | 用戶無需關心 |
| 25 | RST | 輸入 | 芯片復位觸發輸入腳，低電平有效 |
| 26 | GND | - |
