接口類型：UART
藍牙協議：BLE5.0
工作頻率：2.402~2.480GHz
封裝方式：貼片

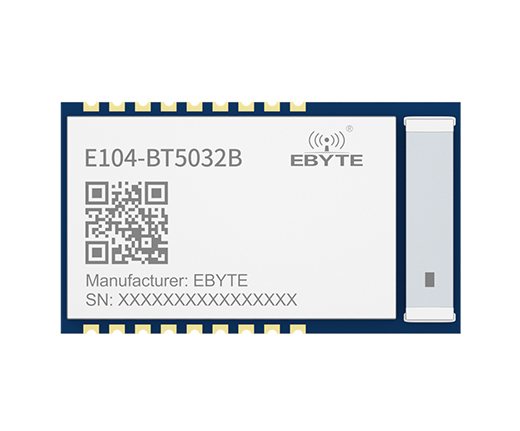

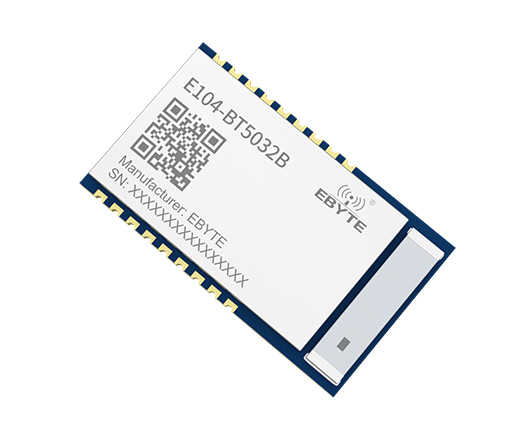

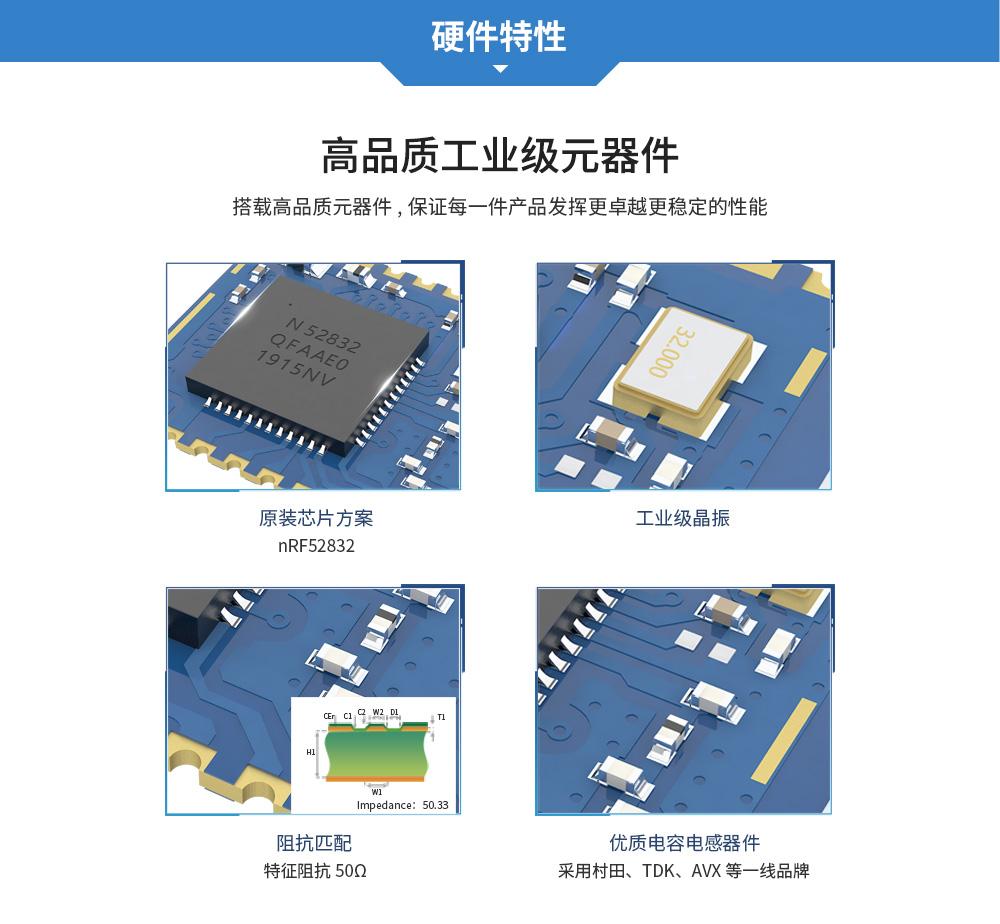

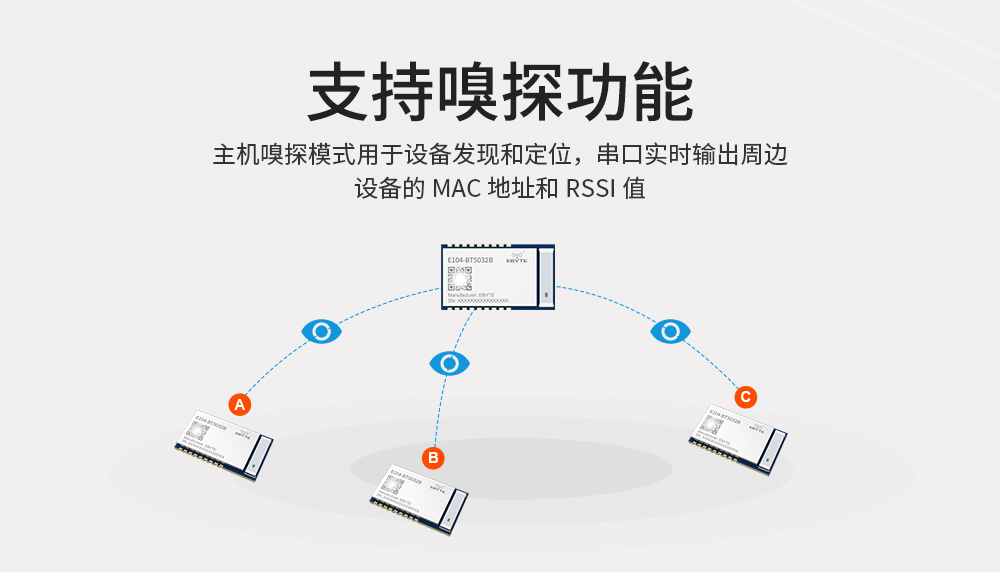

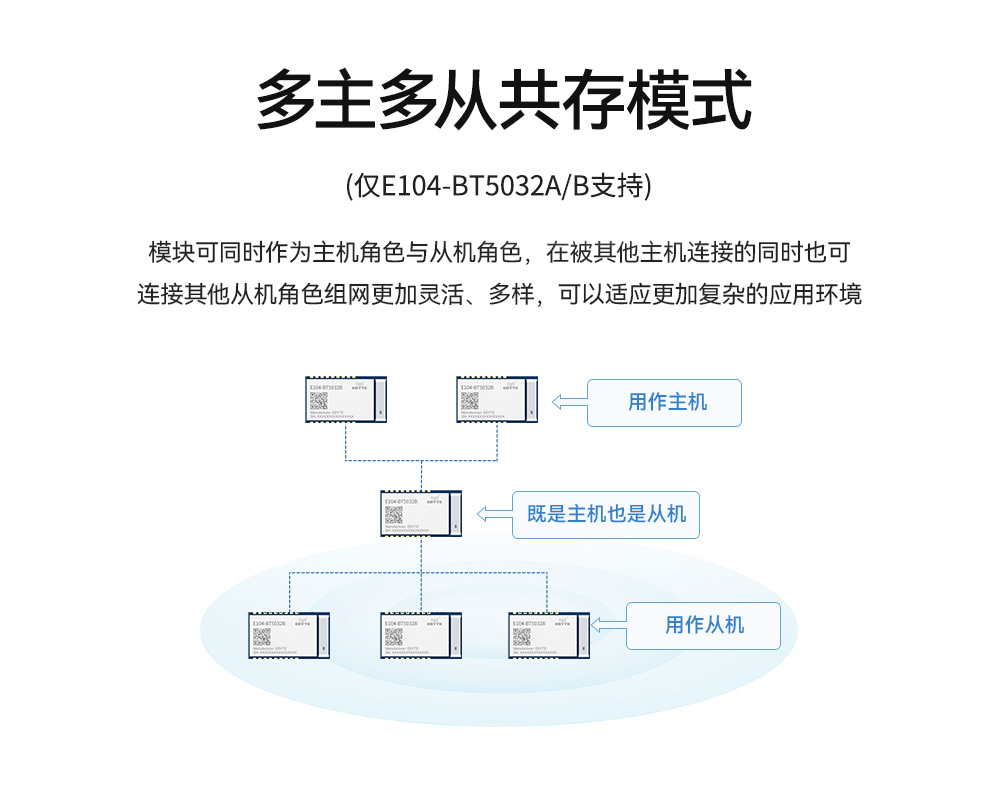

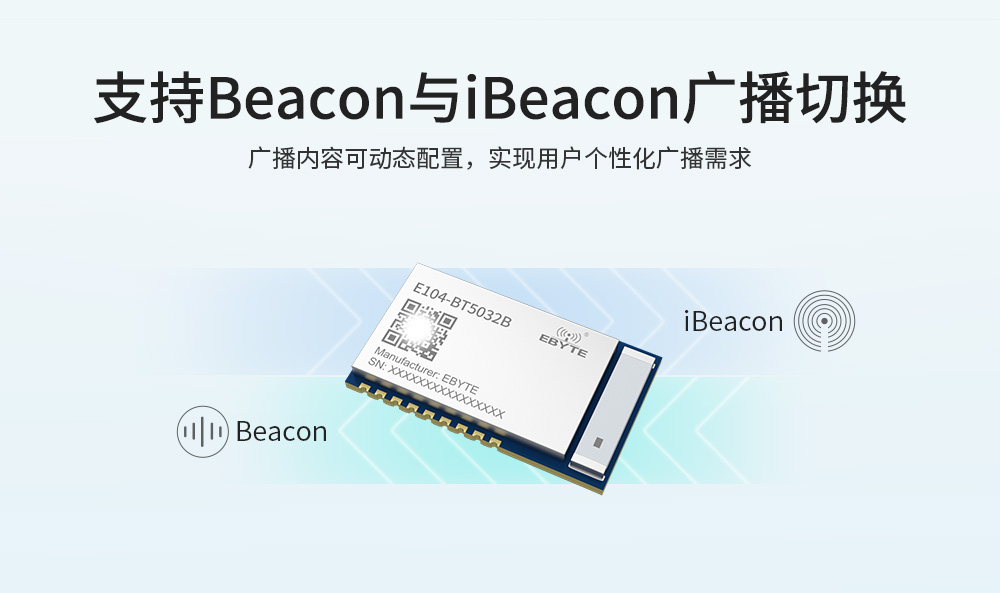

產品簡介：E104-BT5032B藍牙模塊是億佰特基于NORDIC的nRF52832芯片研發的小體積、低功耗串口轉藍牙主從一體模塊，采用藍牙協議5.0版本，該藍牙模塊使用通用的AT指令設置參數，操作簡單快捷。支持低功耗廣播、數據透傳、空中配置。藍牙模塊可廣泛應用于智能穿戴、家庭自動化、家庭安防、個人保健、智能家電、配飾與遙控器、汽車、照明、工業互聯網、智能數據采集、智能控制等領域。

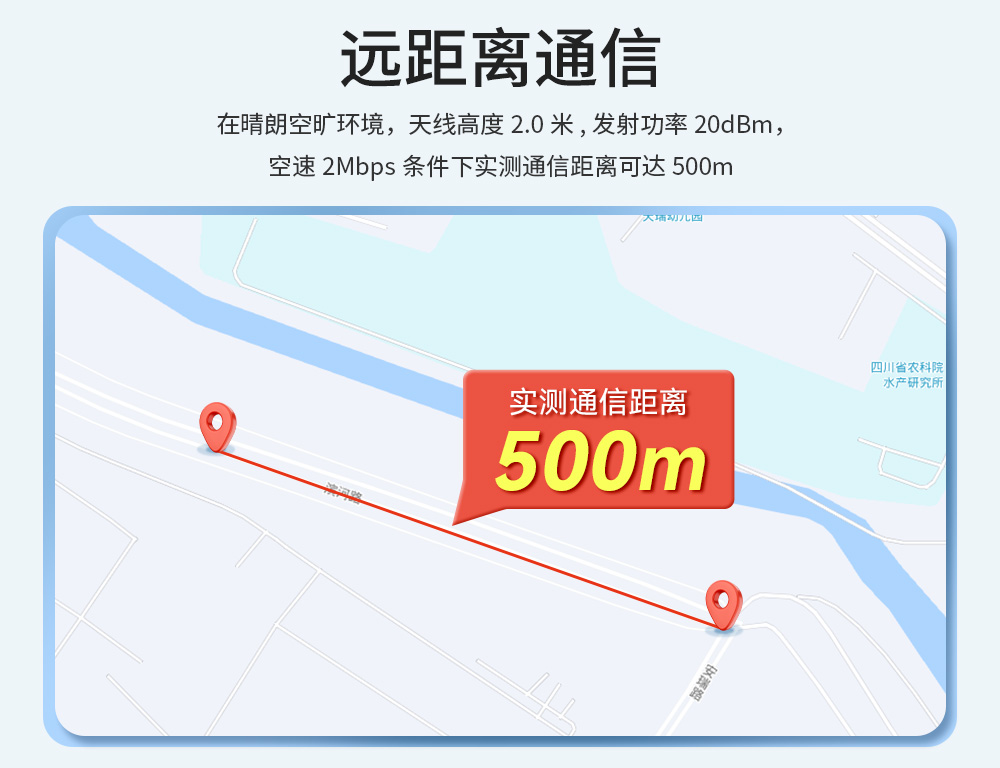

| 主要參數 | 性能 | 備注 | |
| 最小值 | 最大值 | ||
| 電源電壓（V） | 0 | 3.6 | 超過 3.6V 永久燒毀模塊 |
| 阻塞功率（dBm） | - | 10 | 近距離使用燒毀概率較小 |
| 工作溫度（℃） | -40 | 85 | 工業級 |
| 主要參數 | 性能 | 備注 | |||
| 最小值 | 典型值 | 最大值 | |||
| 工作電壓（V） | 2.2 | 3.3 | 3.6 | ≥3.3V 可保證輸出功率 | |
| 通信電平（V） | 3.3 | 使用 5V TTL 有風險燒毀 | |||
| 工作溫度（℃） | -40 | - | 85 | 工業級設計 | |
| 工作頻段（MHz） | 2402 | - | 2480 | 支持 ISM 頻段 | |
| 功 耗 | 發射電流（mA） | - | 150 | - | - |
| 接收電流（mA） | - | 40 | - | - | |
| 休眠電流（μA） | - | 321 | - | - | |
| 發射功率（dBm） | -18 | 20 | - | ±0.5dBm | |
| 接收靈敏度（dBm） | - | -96 | - | Bluetooth?lowenergymode | |
| 任意 I/O | VIL/VIH | GND/0.84 | GND/VCC | 0.36/VCC | |
| VOL/VOH | GND/1.88 | GND/VCC | 0.47/VCC | ||
| 休眠廣播電流(默認) | - | 70 | - | 單位：mA。默認廣播間隙為 1s | |
| 喚醒廣播電流(默認) | - | 120.1 | - | 單位：mA。默認廣播間隙為 1s | |
| 喚醒無廣播電流(默認) | - | 121.1 | - | 單位：mA。默認連接間隙 500ms | |
| 喚醒連接電流(默認) | - | 121 | - | 單位：mA。 | |
| 主要參數 | 描述 | 備注 |
| E104-BT5032A 參考距離 | 70m | 晴朗空曠環境，高度 2.0 米; @4dBm;空速：2Mbps |
| E104-BT5032B 參考距離 | 500m | 晴朗空曠環境，高度 2.0 米; @20dBm;空速：2Mbps |
| 藍牙協議 | BLE5.0 | - |
| 通信接口 | UART 串口 | - |
| 封裝方式 | 貼片式 | - |
| 接口方式 | 1.27 mm | - |

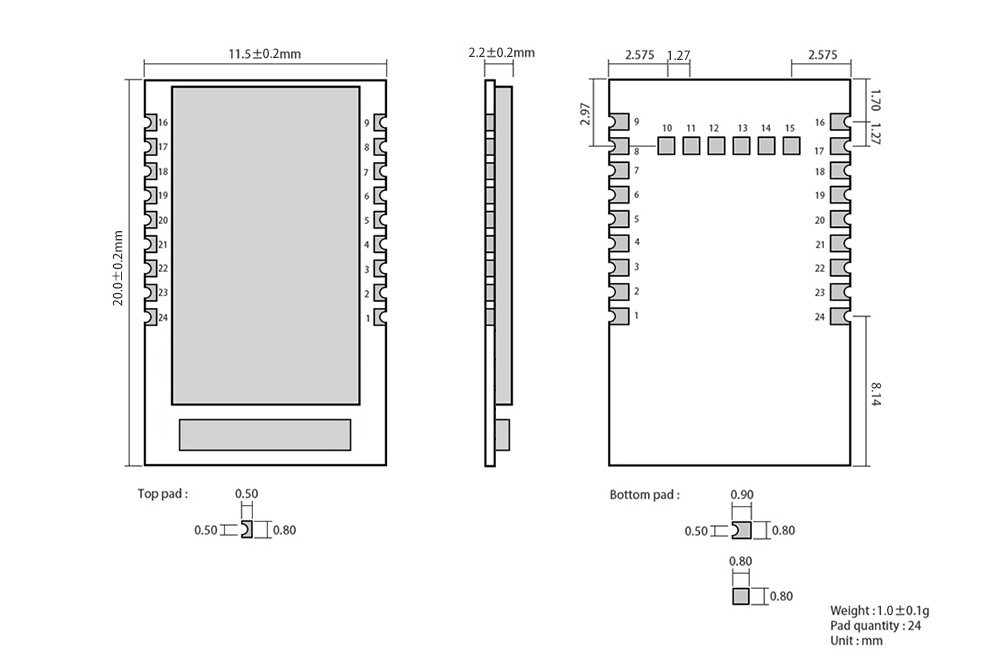

| 外形尺寸 | 11.5*20mm(E104-BT5032B) | - |
| 天線接口 | 陶瓷天線 | 等效阻抗約 50Ω |

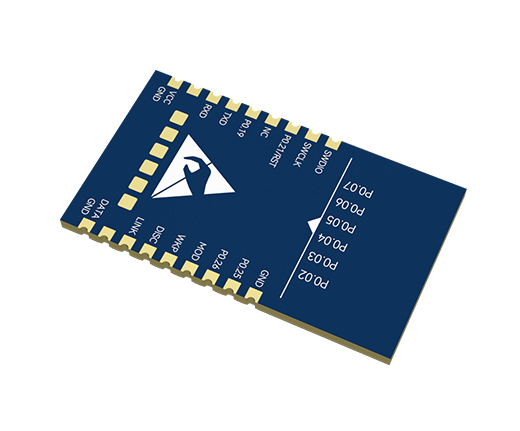

| 引腳序號 | 引腳定義 | 引腳方向 | 引腳功能 | 說明 |
| 1 | GND | 輸入 | 電源地 | |
| 2 | P0.25 | 輸入/輸出 | GPIO/PWM | 可配置為 GPIO 輸入/輸出或 PWM，詳情請查看 6.9 節 GPIO 功能 |
| 3 | P0.26 | 輸入/輸出 | GPIO/PWM | |
| 4 | MOD5 | 輸入 | 模式選擇 | 低電平：配置模式； 高電平：透傳模式。 |

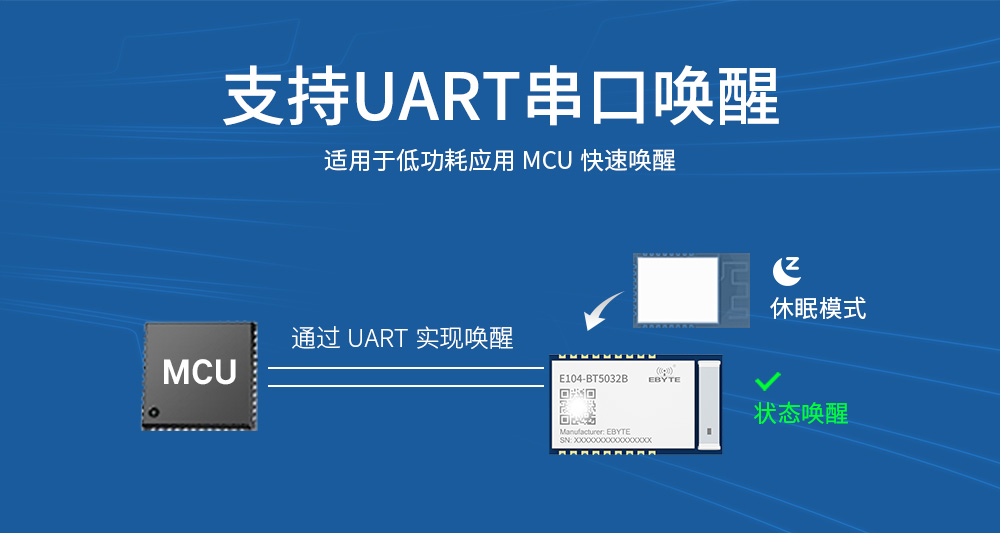

| 5 | WKP6 | 輸入 | 喚醒引腳 | 喚醒：下降沿； 睡眠：上升沿。 |
| 6 | DISC | 輸入 | 斷開連接引腳 | 內部上拉。下降沿有效 |
| 7 | LINK7 | 輸出 | 連接狀態 | 藍牙連接：低電平 藍牙無連接：高電平 |
| 8 | DATA8 | 輸出 | 數據指示 | 數據指示引腳，藍牙模塊通過串口輸出數據時，藍牙模塊置DATA引腳為低電平，表示正在發送數據。AT指令響應不改變DATA引腳狀態。 |
| 9 | GND | -- | 電源地 | |
| 10 | P0.02 | 輸入/輸出 | GPIO/PWM | 可配置為 GPIO 輸入/輸出或 PWM，詳情請查看 6.9 節 GPIO 功能 |
| 11 | P0.03 | 輸入/輸出 | GPIO/PWM | |
| 12 | P0.04 | 輸入/輸出 | GPIO/PWM | |
| 13 | P0.05 | 輸入/輸出 | GPIO/PWM | |
| 14 | P0.06 | 輸入/輸出 | GPIO/PWM | |
| 15 | P0.07 | 輸入/輸出 | GPIO/PWM | |
| 16 | GND | -- | 電源地 | 電源地 |
| 17 | VCC | -- | 電源正 | 電源正 |
| 18 | RXD | 輸入 | UART RX引腳 | |
| 19 | TXD | 輸出 | UART TX引腳 | |
| 20 | P0.19 | 輸入/輸出 | GPIO | 無功能，建議懸空 |
| 21 | NC | |||
| 22 | P0.21/RST | 電源復位 | 低電平有效 | |
| 23 | SWDCLK | -- | -- | -- |
| 24 | SWDIO | -- | -- | -- |
