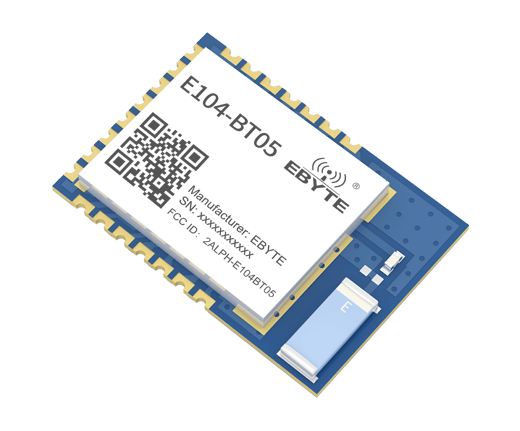

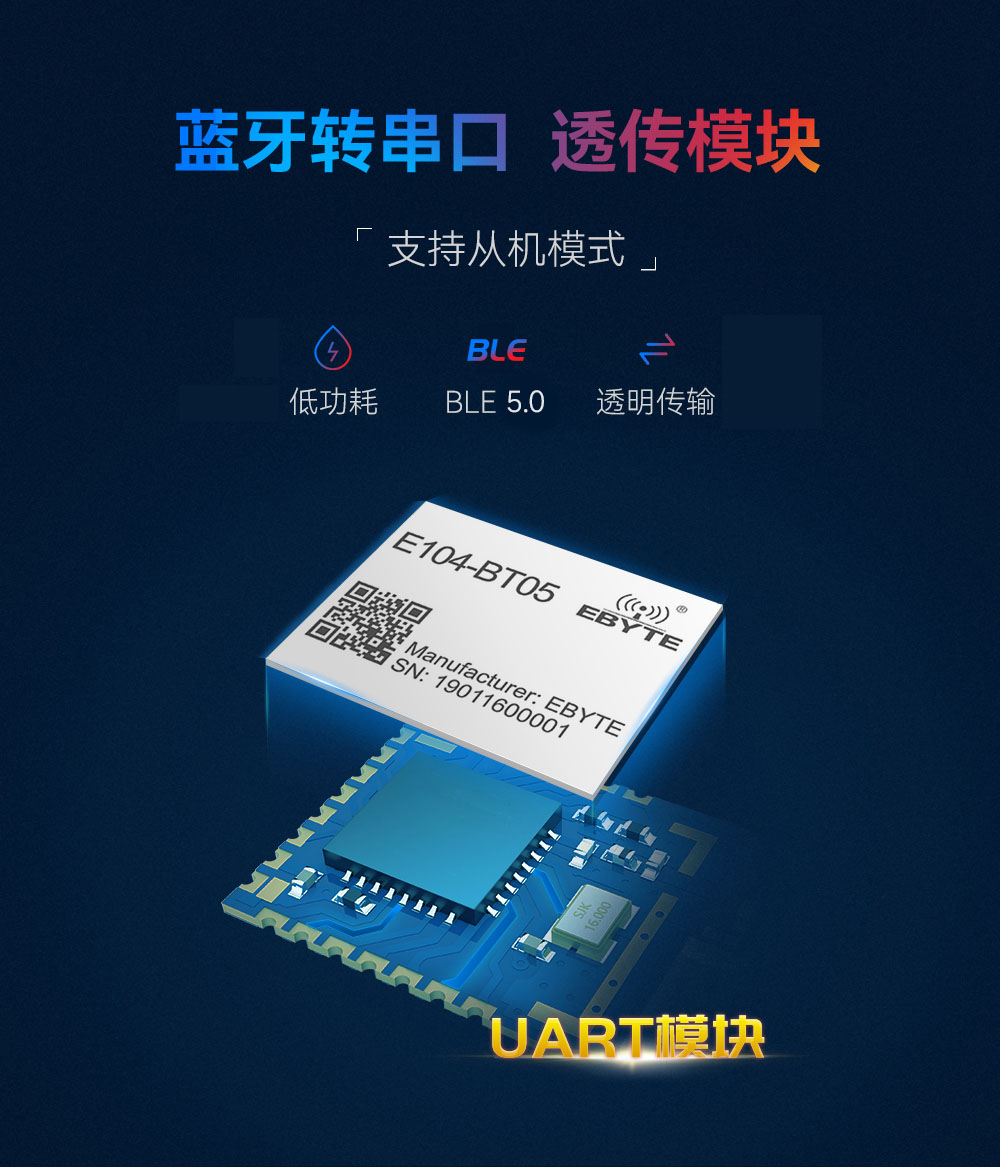

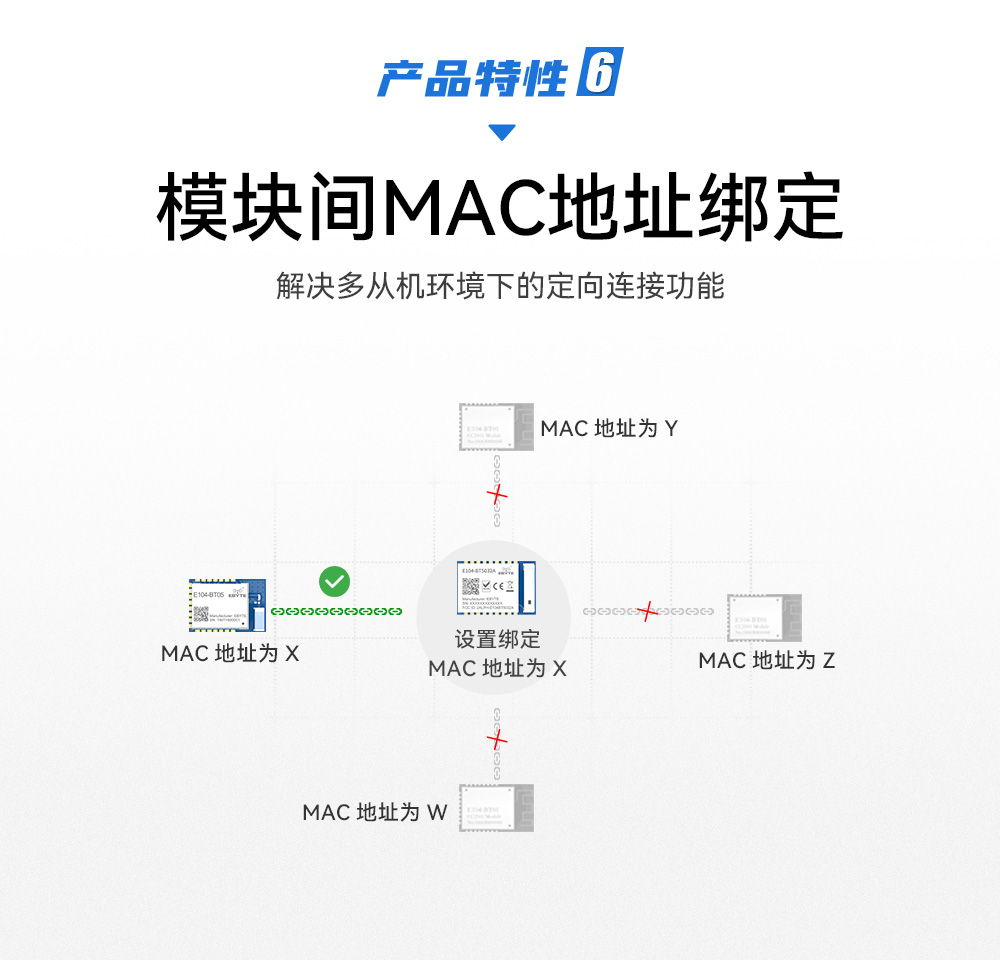

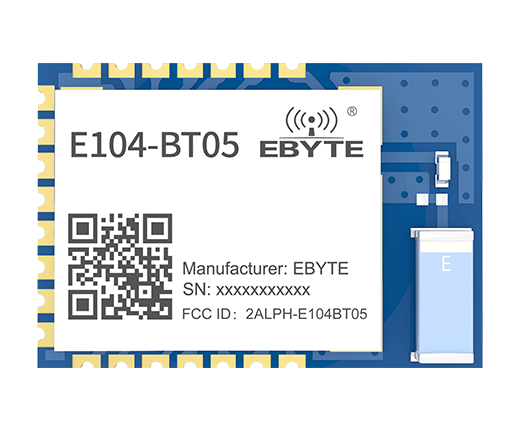

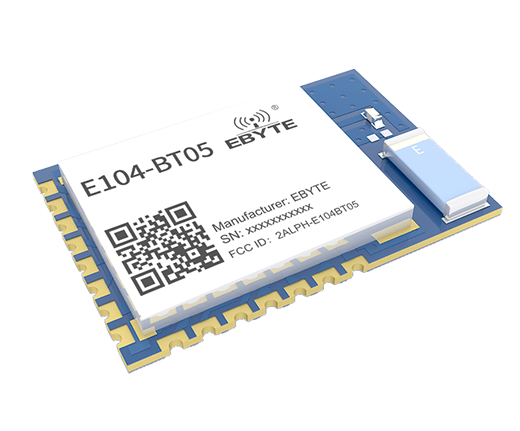

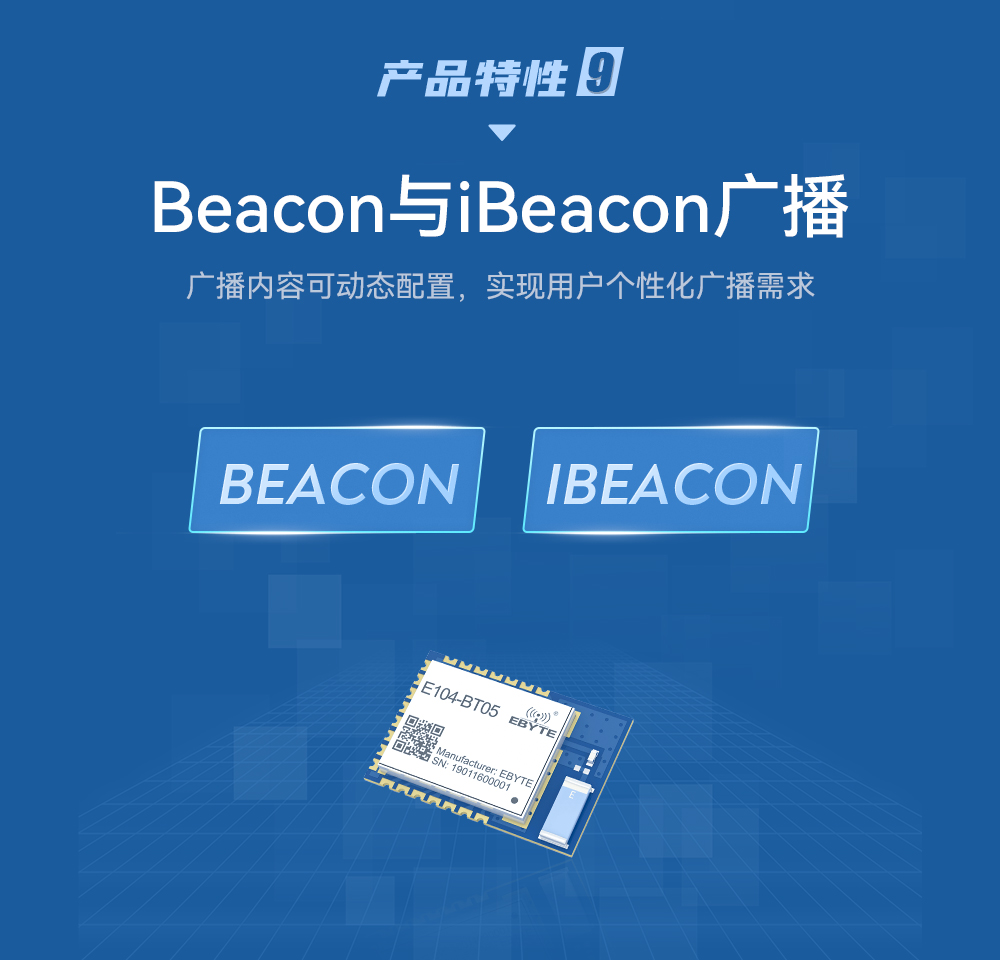

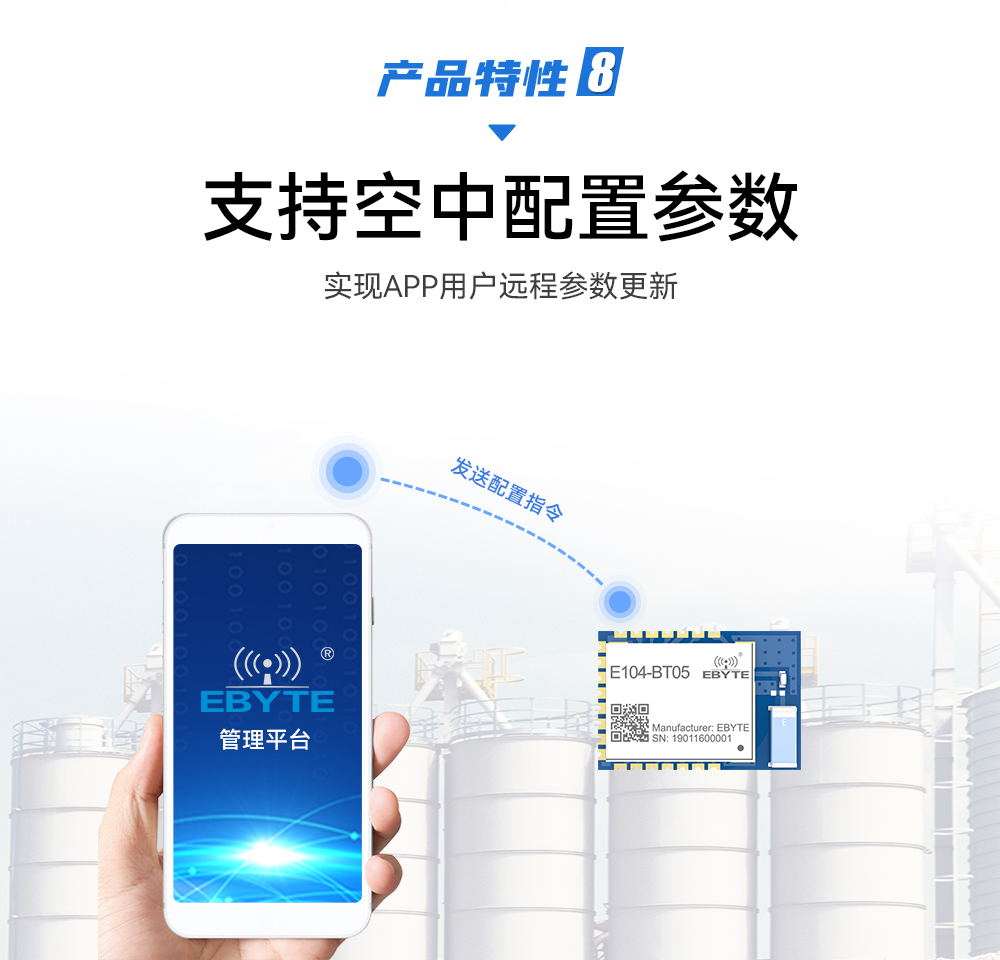

| 射頻參數 | 參數值 | 備注 |
| 工作頻段 | 2402~2480 MHz | 支持ISM 頻段 |
| 發射功率 | 8 dBm | - |
| 接收靈敏度 | -92 dBm | - |
| 實測距離 | 70米 | 晴朗空曠，天線高度2.5米 |
| 硬件參數 | 參數值 | 備注 |

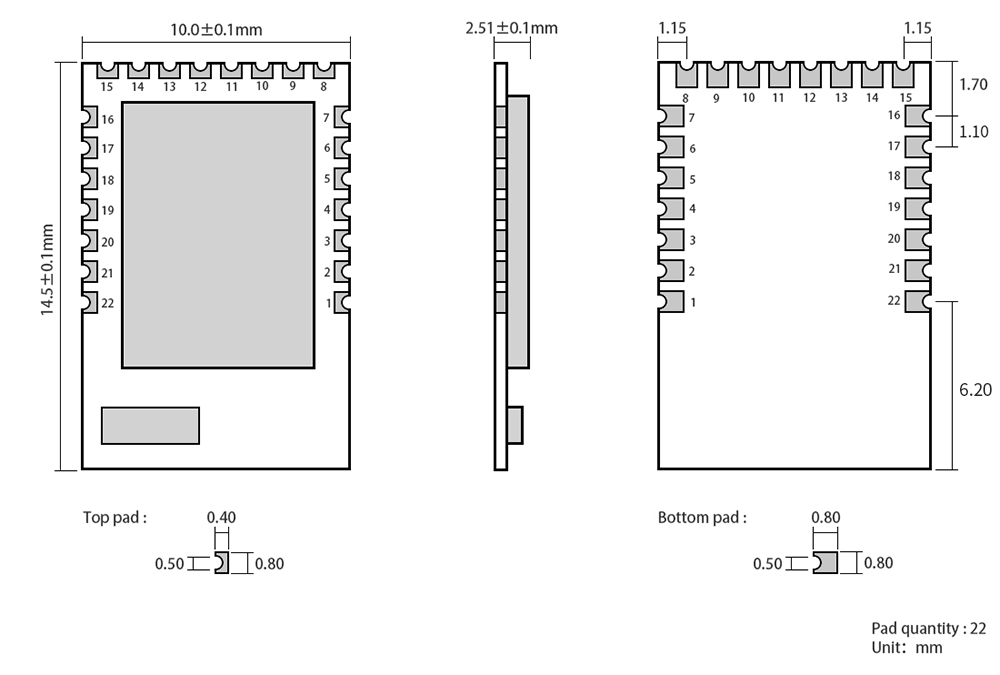

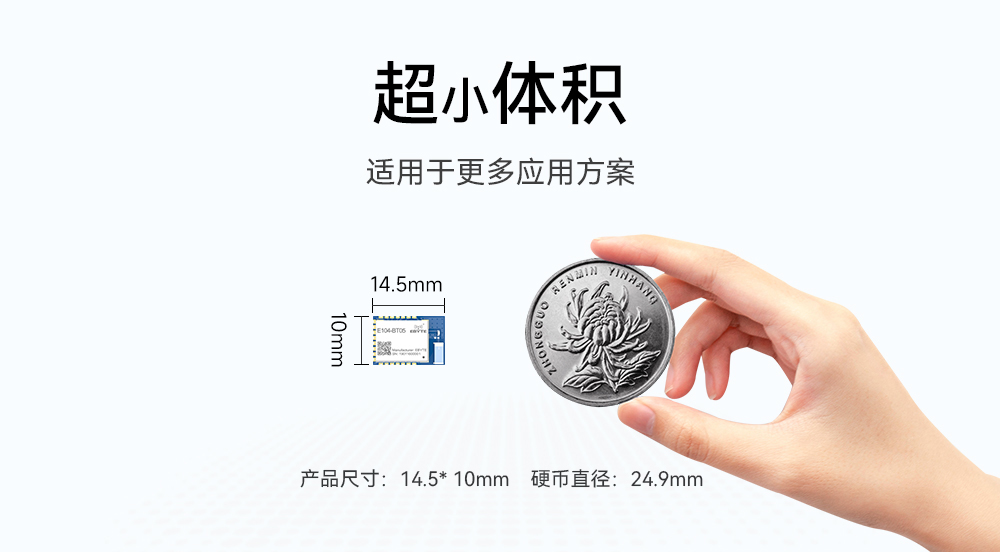

| 尺寸大小 | 10 * 14.5 mm | - |

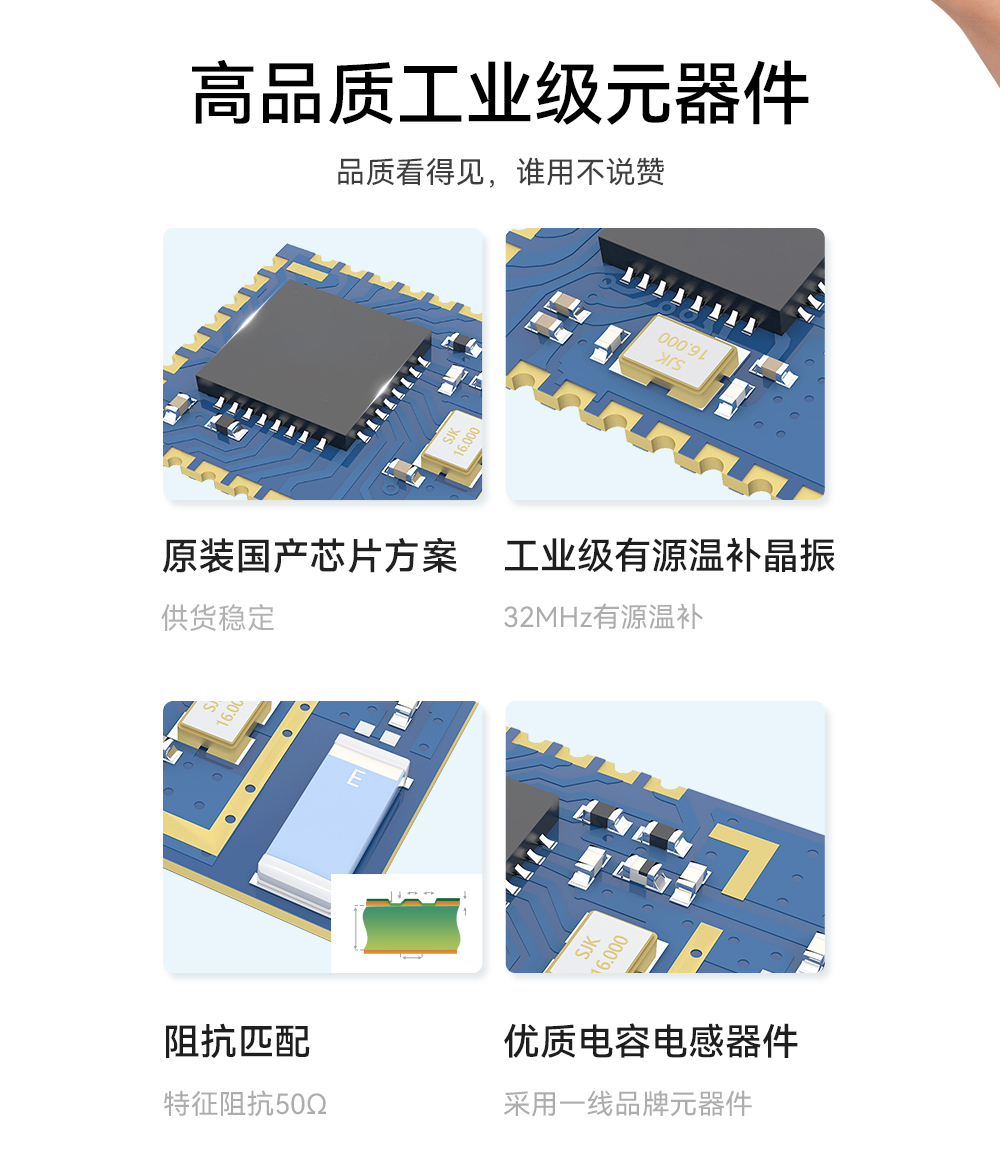

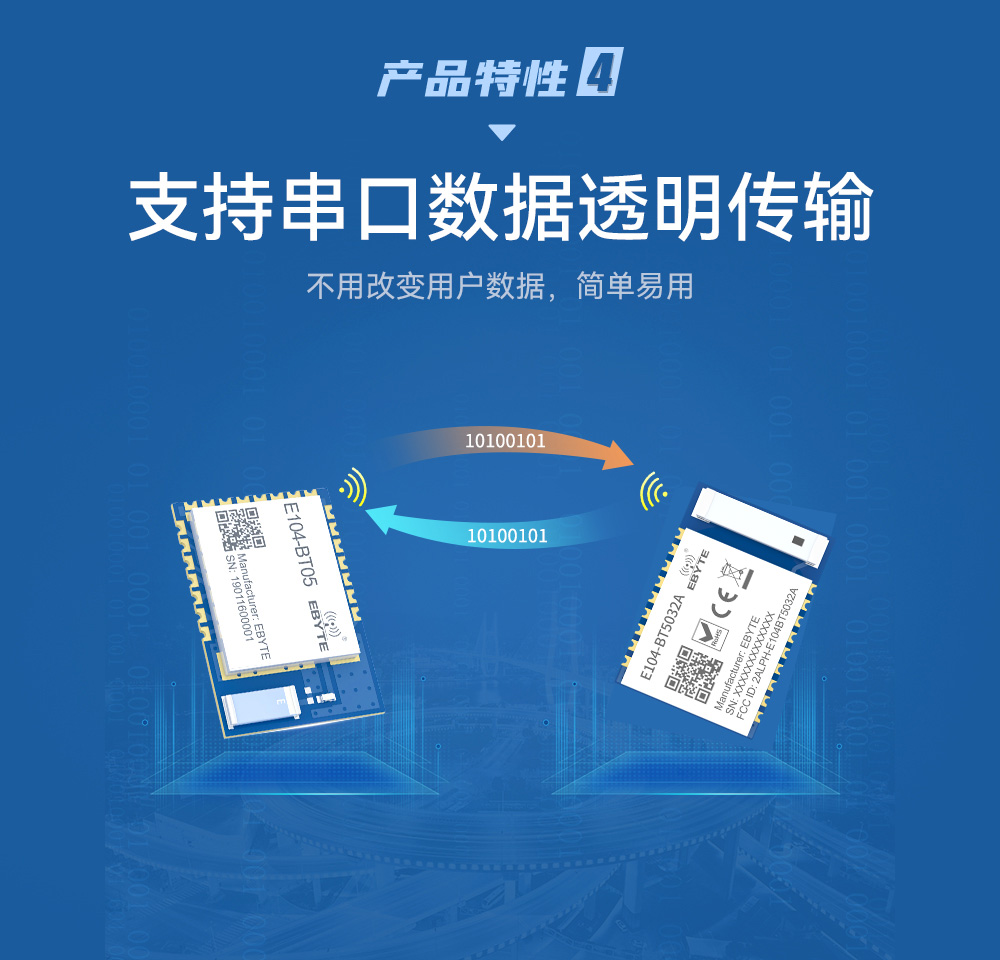

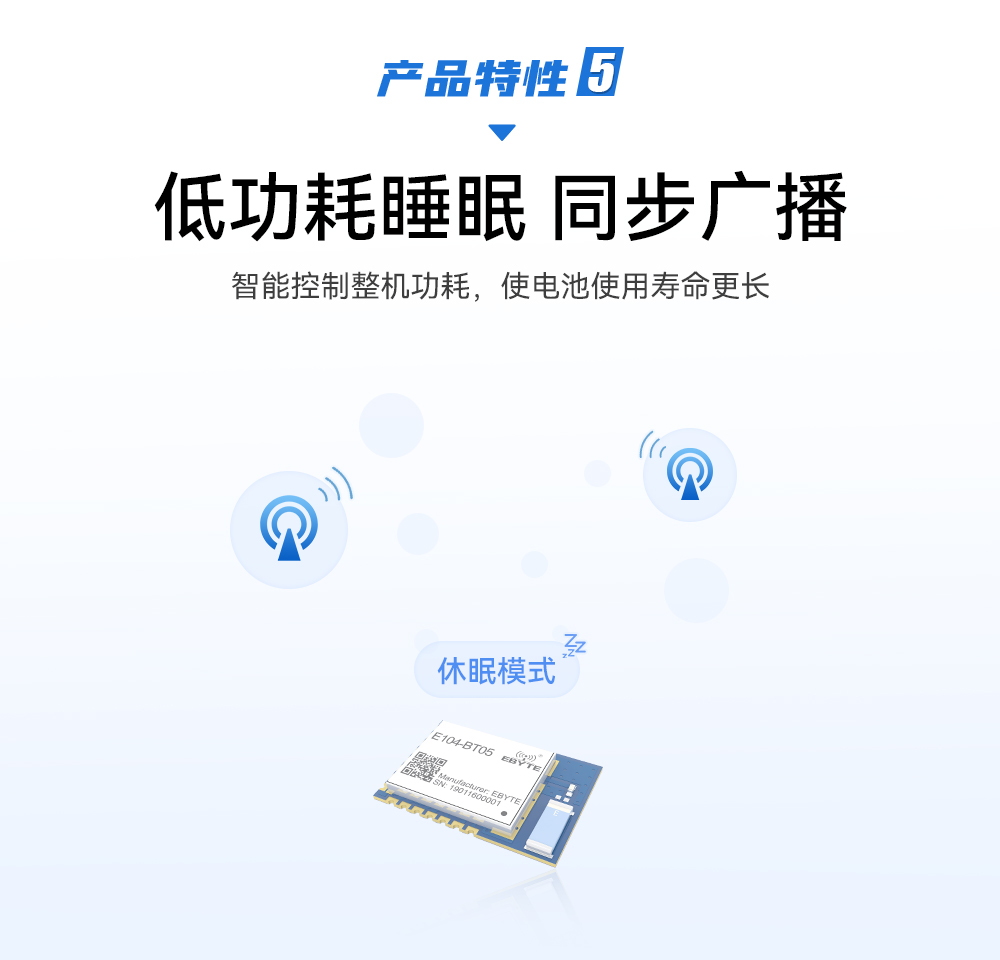

| 天線形式 | PCB板載天線 | 等效阻抗約50Ω |
| 通信接口 | UART | - |
| 封裝方式 | 貼片 | - |
| 電氣參數 | 最小值 | 典型值 | 最大值 | 單位 | 條件 |
| 電源電壓 | 2.5 | 3.3 | 3.6 | V | ≥3.3V 可保證輸出功率 |
| 通信電平 | - | 3.3 | - | V | 使用5V TTL 有風險燒毀 |
| 發射電流 | - | 13 | - | mA | 瞬時功耗 |
| 接收電流 | - | 13 | - | mA | - |
| 休眠電流 | - | 8 | - | μA | - |
| 工作溫度 | -40 | - | +85 | ℃ | 工業級 |
| 工作濕度 | 10 | - | 90 | % | - |
| 儲存溫度 | -40 | - | +125 | ℃ | - |
| 序號 | 定義 | 引腳方向 | 引腳功能 | 說明 |
| 1 | RST | 輸入 | 電源復位 | 低電平有效 |
| 2 | LINK | P1.4 | 狀態 | 連接狀態指示低電平有效 |

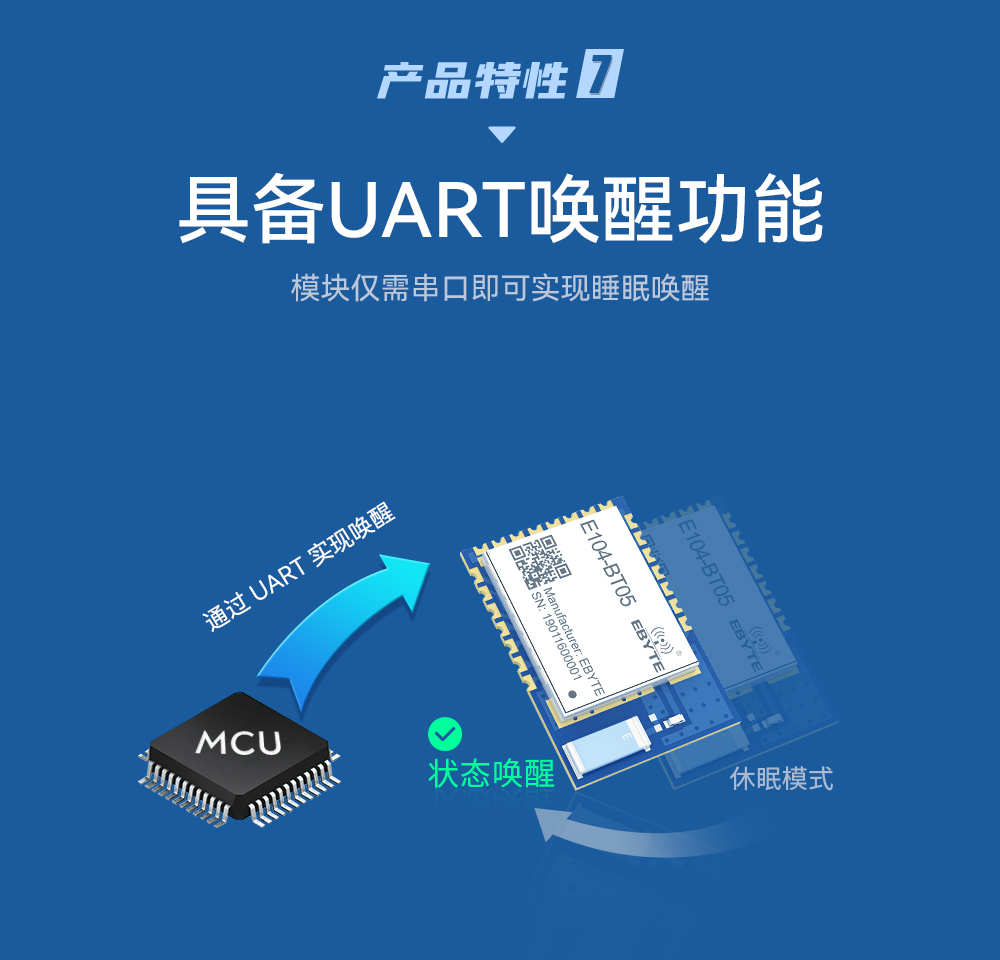

| 3 | WKP | 輸入 | 喚醒引腳 | 低電平喚醒 |

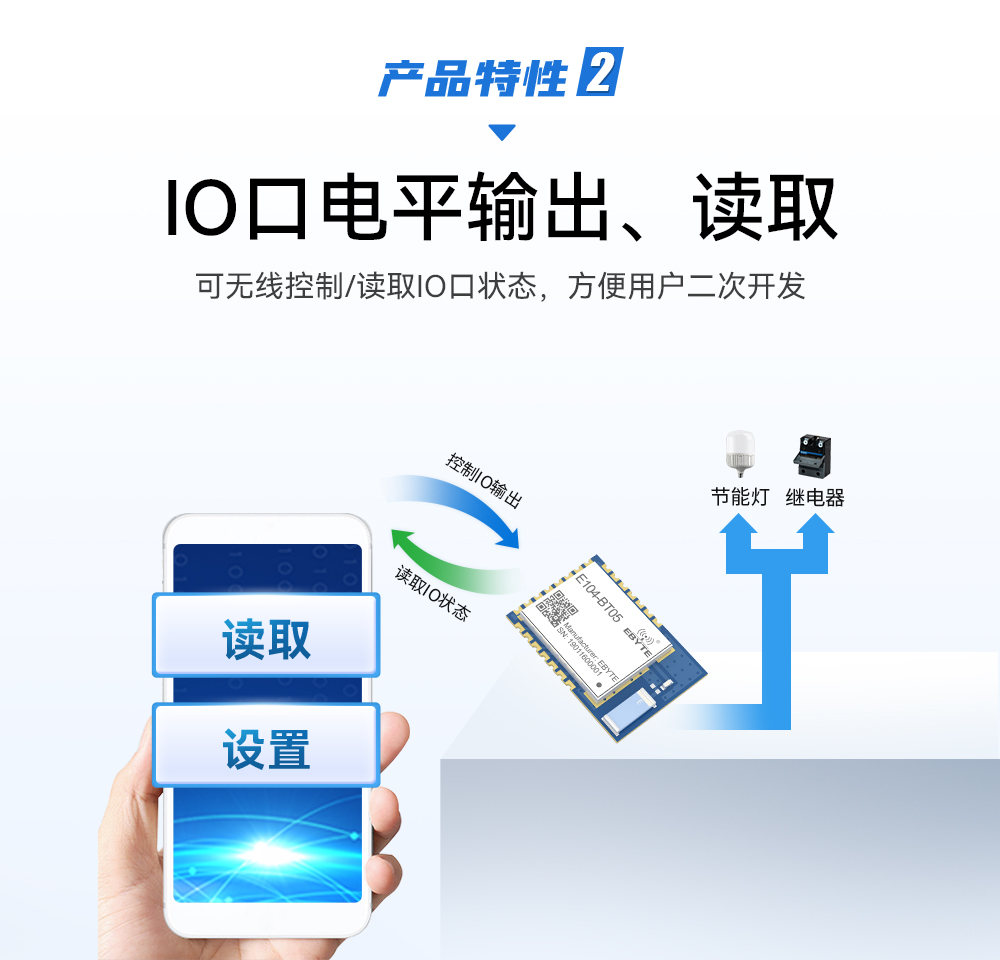

| 4 | IO2 | 輸出 | 電平輸出 | 根據AT指令輸出高低電平 |
| 5 | DATA | 輸出 | 數據指示 | 數據指示引腳 |
| 6 | IO3 | 輸出 | 電平輸出 | 根據AT指令輸出高低電平 |
| 7 | GND | - | 電源地 | 電源地 |
| 8 | SWS | 未用 | 未用 | 未用 |

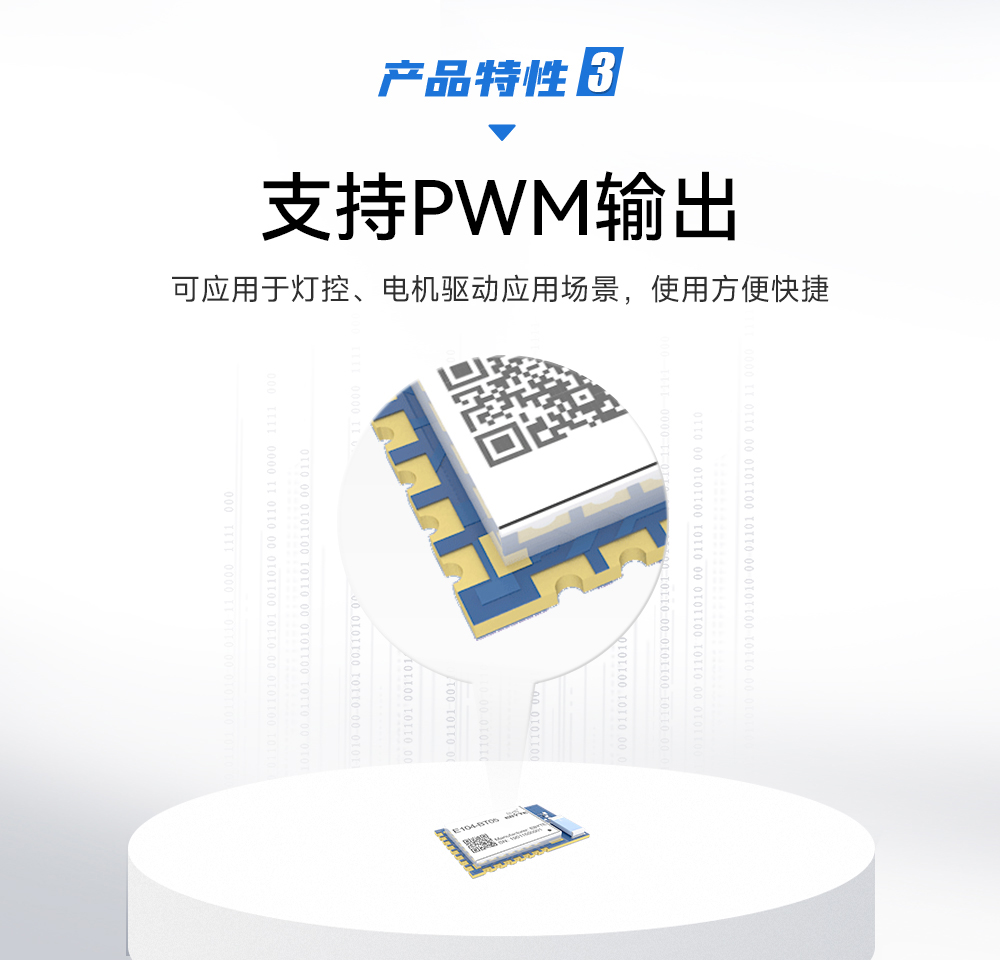

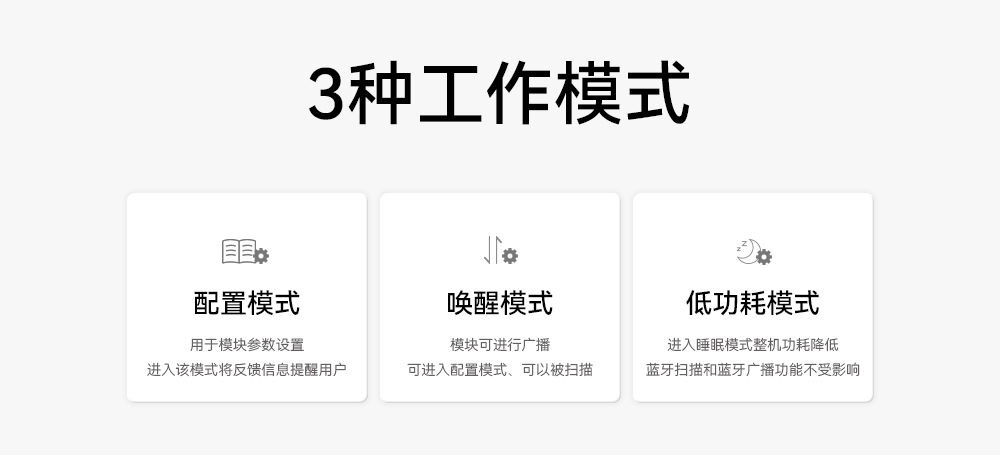

| 9 | PWM1 | 輸出 | 輸出PWM | 根據AT指令輸出PWM波 |
| 10 | PWM2 | 輸出 | 輸出PWM | 根據AT指令輸出PWM波 |
| 11 | PWM3 | 輸出 | 輸出PWM | 根據AT指令輸出PWM波 |
| 12 | DM | - | - | USB數據Minus |
| 13 | DP | - | - | USB數據Positive |
| 14 | VDD | - | 電源正 | 電源正 |
| 15 | GND | - | 電源地 | 電源地 |
| 16 | MOD | 輸入 | 模式選擇 | 配置模式選擇引腳 |
| 17 | DISC | 未用 | 未用 | 未用 |
| 18 | PWM0 | 輸出 | 輸出PWM | 根據AT指令輸出PWM波 |
| 19 | TXD | 輸出 | 串口輸出 | 串口輸出 |
| 20 | RXD | 輸入 | 出口輸入 | 出口輸入 |
| 21 | IO0 | 輸入 | 電平讀取 | IO0電平讀取 |
| 22 | IO1 | 輸入 | 電平讀取 | IO1電平讀取 |
